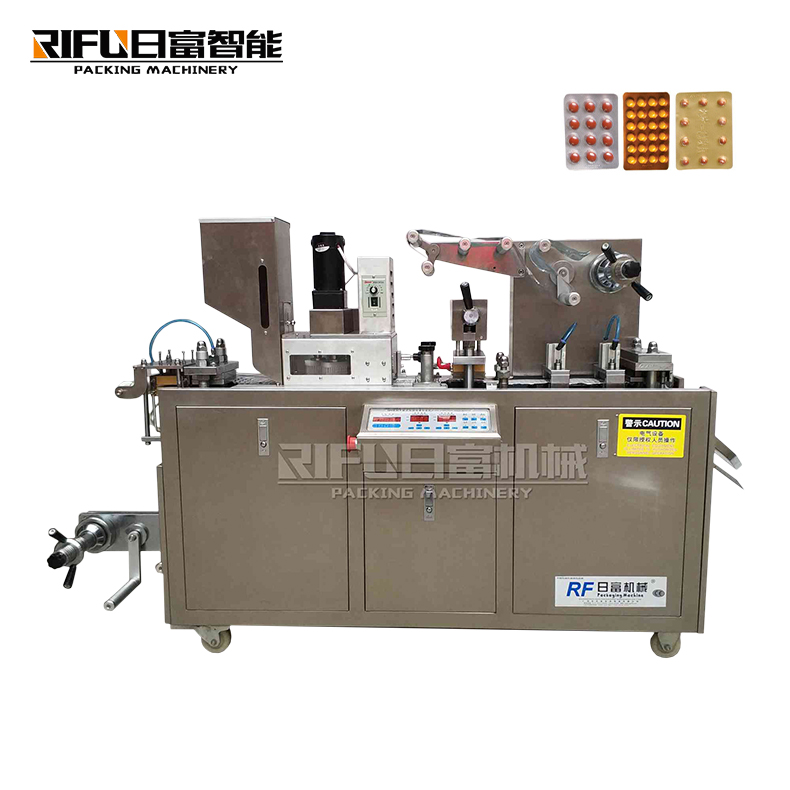

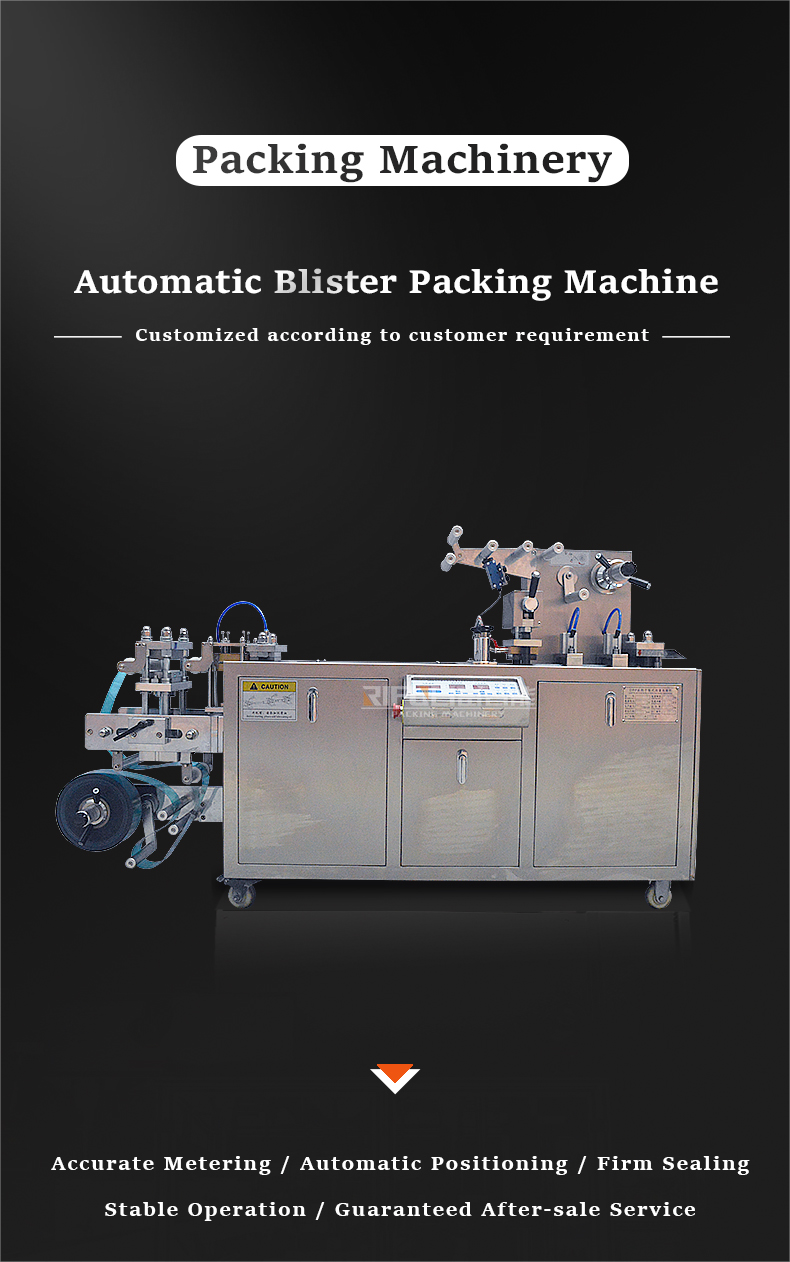

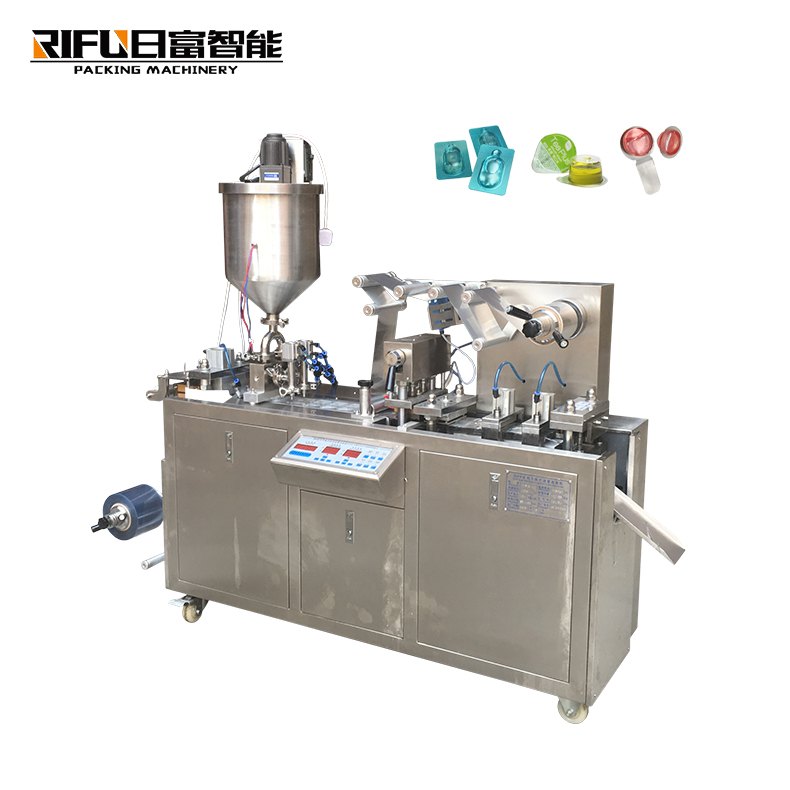

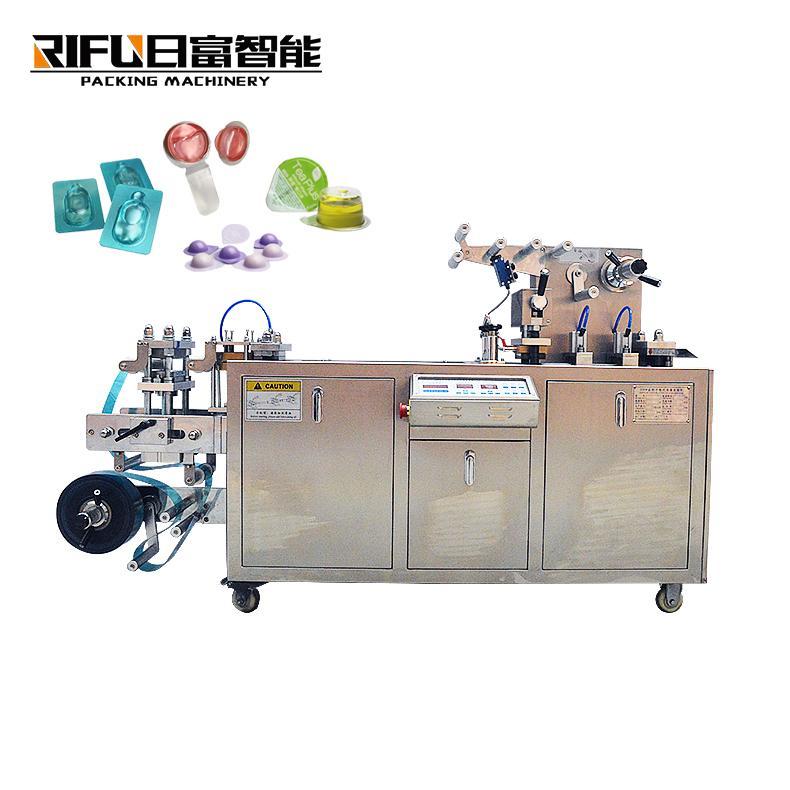

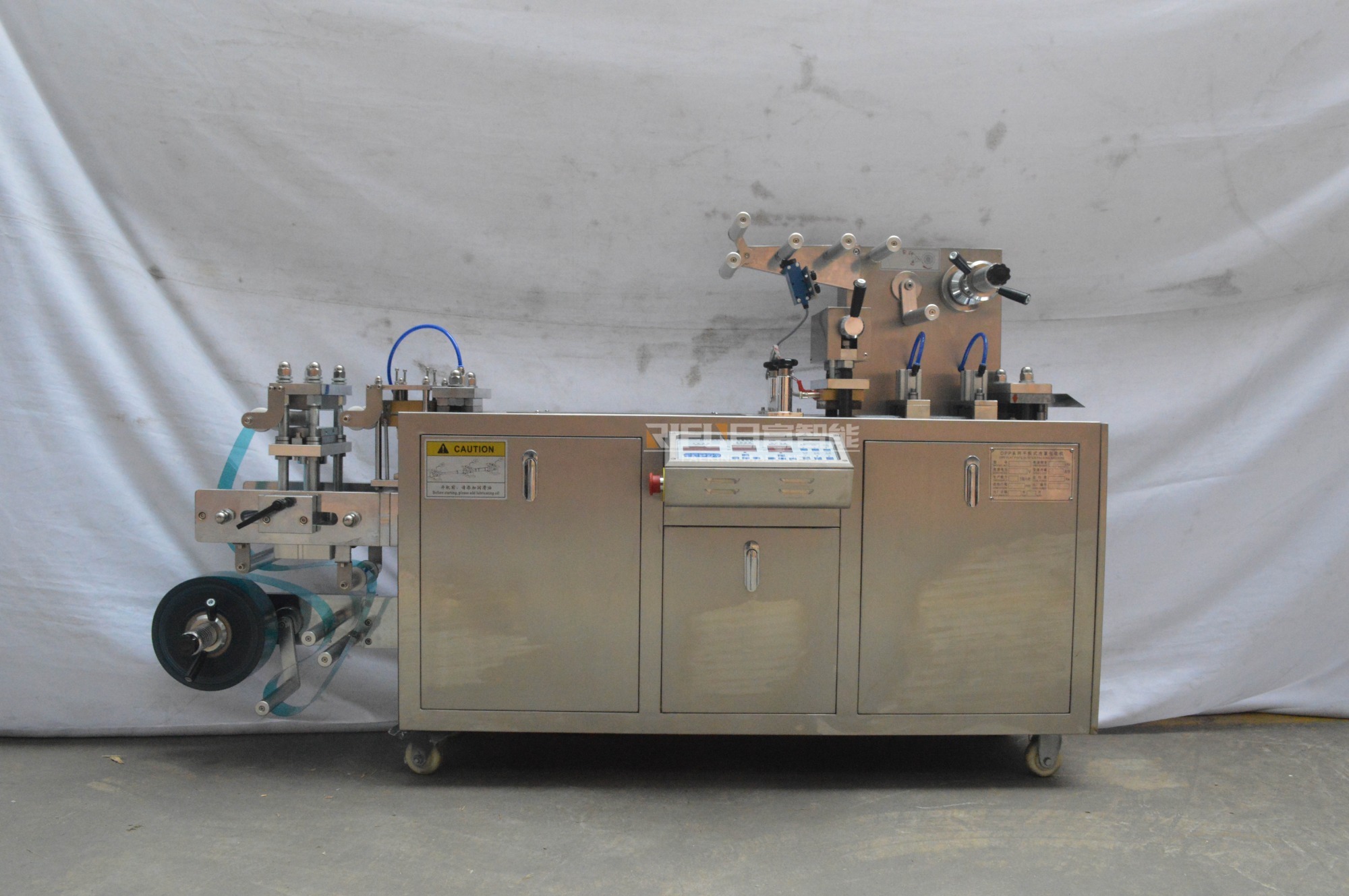

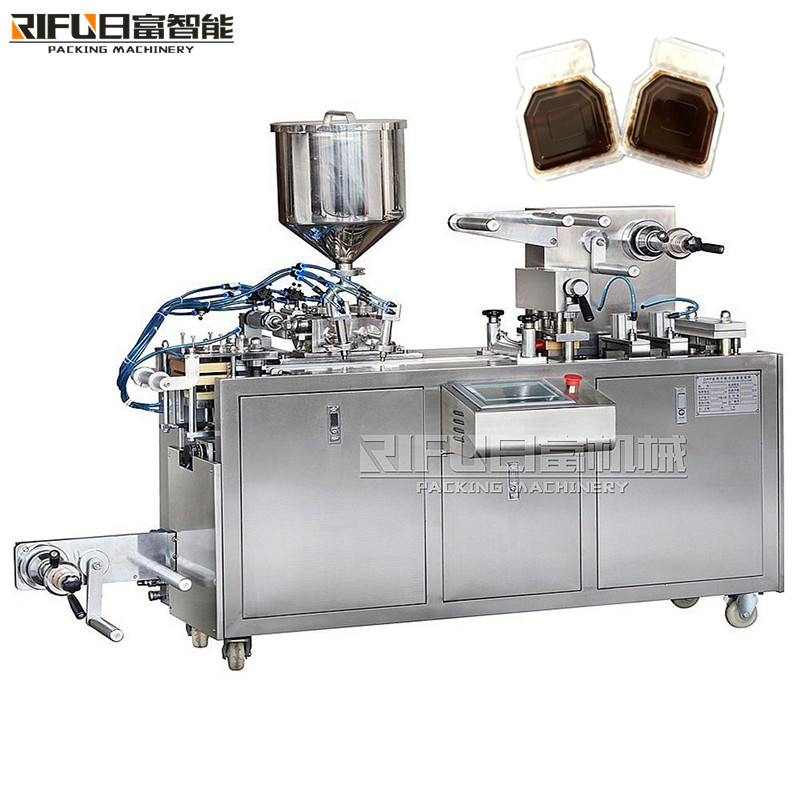

The blister packing machine is suitable for capsule, tablet, big honey pills, candies, liquids, pastes, syringes as well as irregular shape al-plastic, paper-plastic composite and al-al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, with high automation.

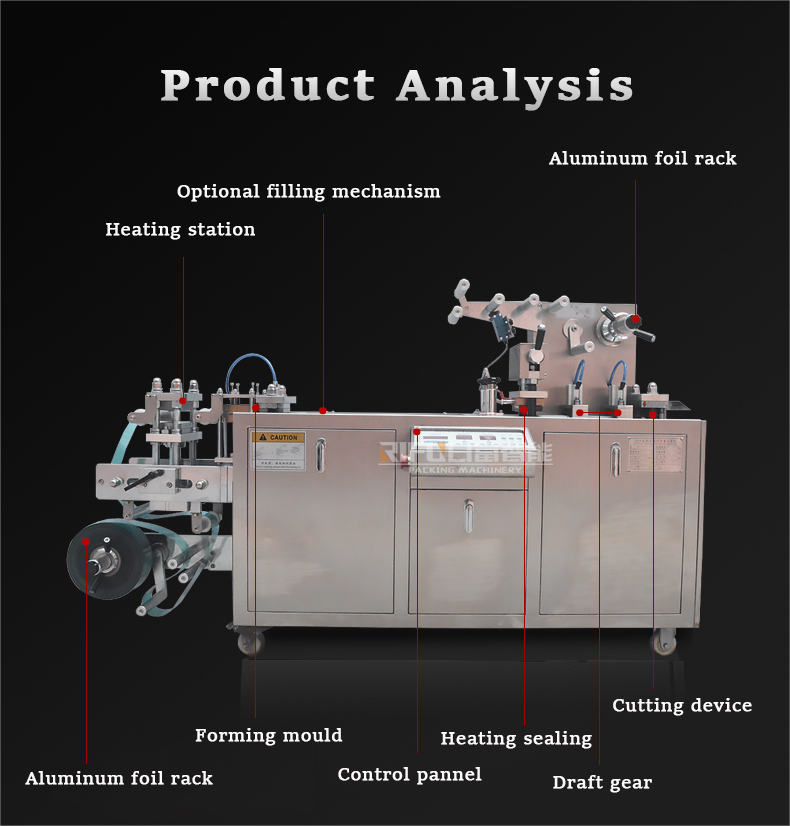

Working process: Automatic film spreading-preheating-forming-filling-heat sealing-cutting.
| Model | RF DPP 80-105 | RF DPP 110-150 | RF DPP 155-180 | RF DPP 185-260 |
| Punch frequency | 10-33TPM | 10-35TPM |
10-35TPM |
10-40TPM |
| Max. forming area | 105*70MM | 145*110MM | 175-110MM | 250-140MM |
| Max. forming depth | 26MM or Customized |
|||
| Filling volume | 0.5-75ML or Customized |
|||
| Stroke range | 30-80MM | 50-120MM | 50-120MM | 40-140MM |
| Air pressure | 0.4-0.6MPA |
|||
| Total power supply | 2.8KW 220V 50HZ | 3.8KW 380V 50HZ | 3.8KW 380V 50HZ |
8.5KW 380V 50HZ |
| PVC hard film | (0.15-0.5)*110MM |
(0.15-0.5)*150MM |
(0.15-0.5)*180MM |
(0.15-0.5)*250MM |
| PTP aluminum film | (0.02-0.035)*110MM |
(0.02-0.035)*150MM |
(0.02-0.035)*180MM |
(0.02-0.035)*250MM |
| Dialysis paper | 50-100G*110MM |
50-100G*150MM |
50-100G*180MM |
50-100G*250MM |
| Mould cooling | Tap water or Recycling water |
|||
| Outline dimension | 1840*590*1100MM | 2315*635*1405MM | 2550*640*1600MM | 3250*710*1700MM |
| Weight | 420KG | 820KG | 870KG | 1400KG |
