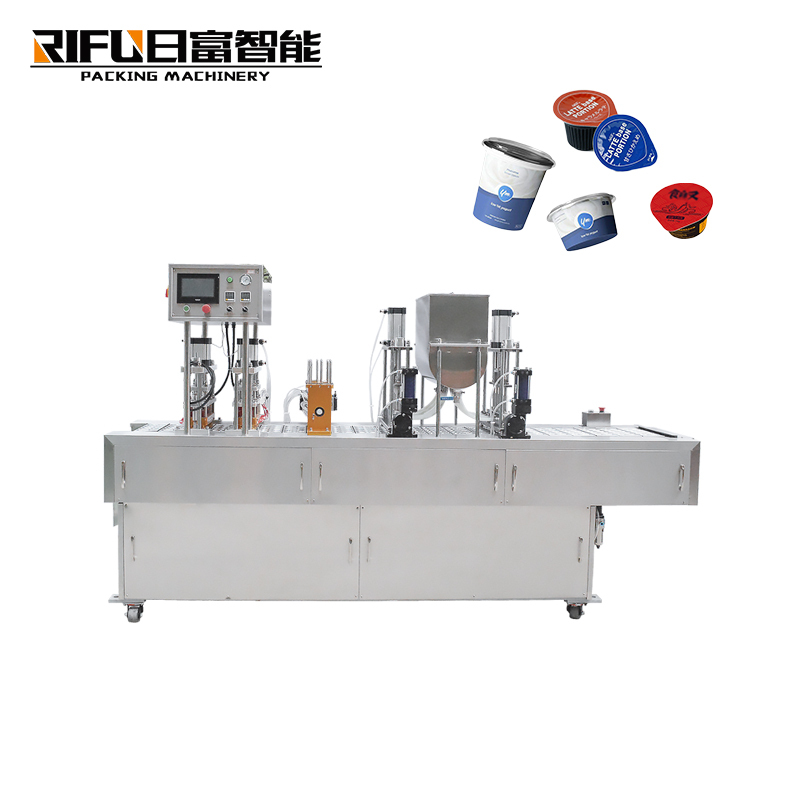

Automatic Butter Jam Oil Honey Blister Packing Machine Blister Cup Filling And Sealing Packaging Machine

No.RF-PZB

Min.Order Quantity:1 Set/Sets Supply Ability: 500 Set/Sets per Month Port: Guangzhou Payment Terms: T/T,Western Union,paypal

Description

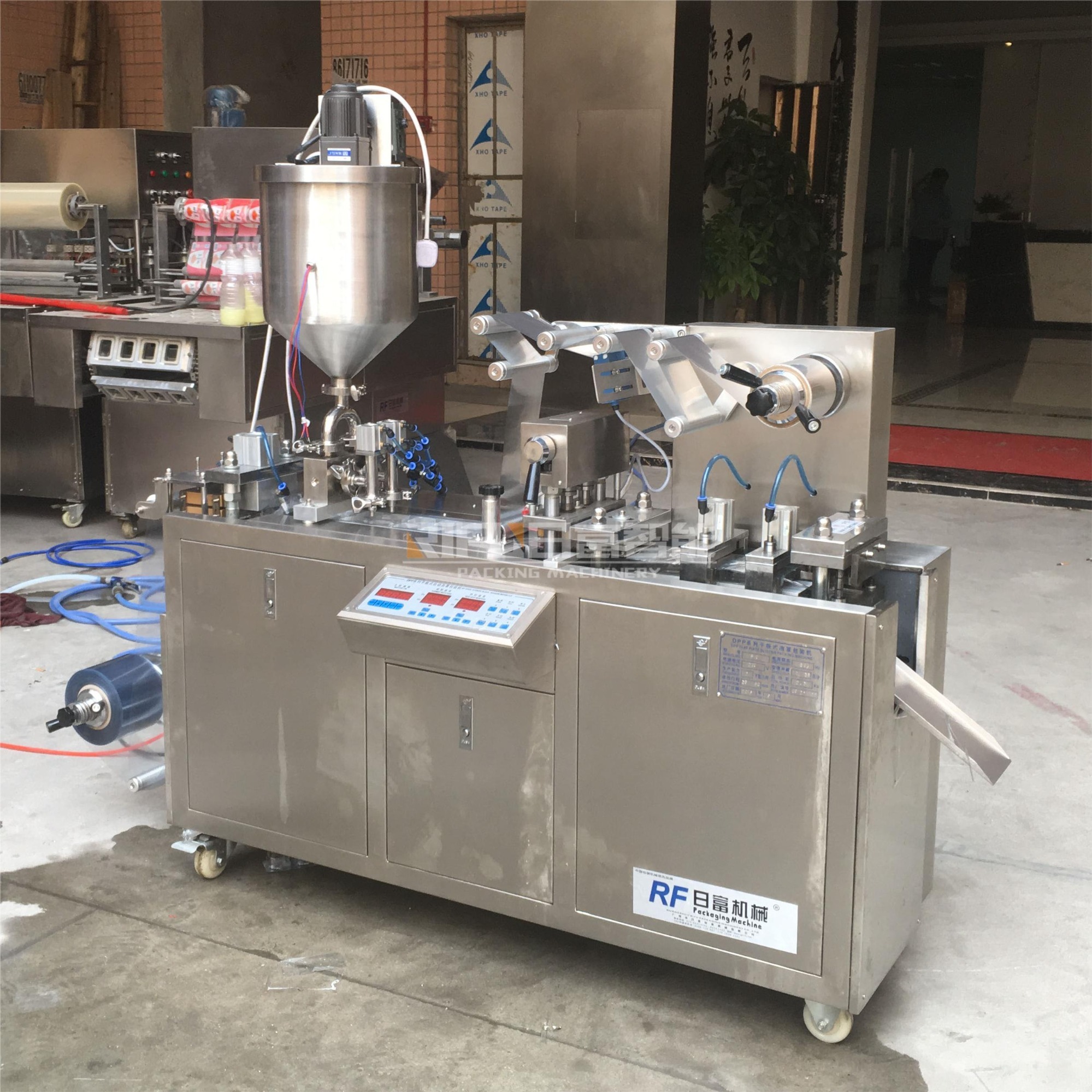

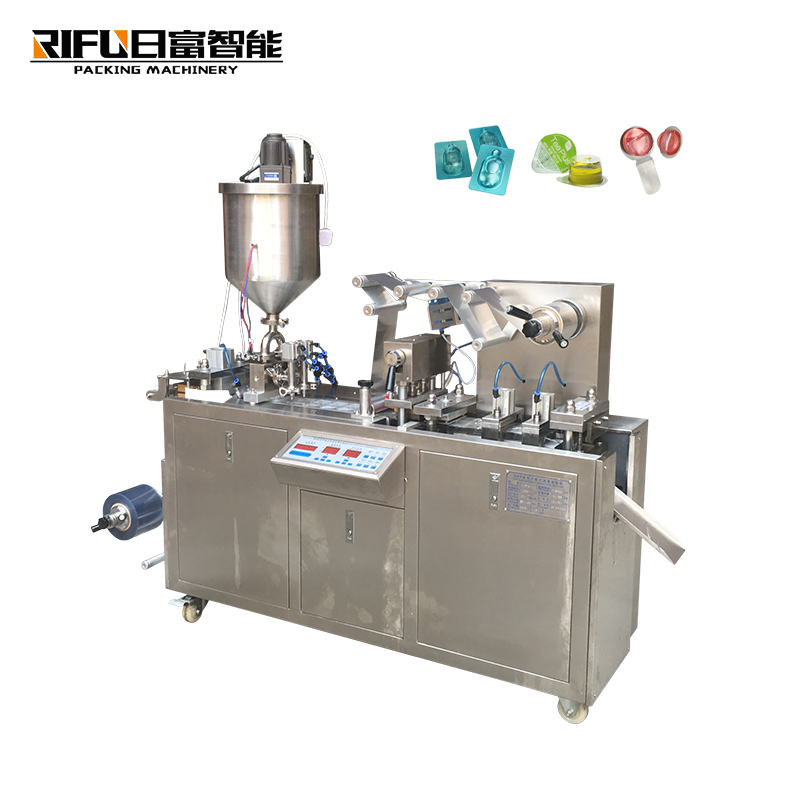

Automatic Butter Jam Oil Honey Blister Packing Machine

Liquid blister packaging machine which integrates many functions.It adopts photo electrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the synchronous stability of over- length distance and multi stations. It is suitable for all kinds of liquid products in cosmetics, food, chemical and other industries, Such as honey, ketchup, jam, soy sauce, seasoning sauce, butter, nutrient solution, etc.

Features

1. Equipped with fiber-optic or inductive checking mechanism, which can eliminate by itself the waste plate with lack of tablet or other packed material, with recovery rate of 100%.

2. Main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, low noise and long service life.

3. Forming mould, hot-sealing mould and pressing mould adopt bolt positioning, with exact positioning, easy to change molds and material saving.

4. Heat-sealing station fixed, forming, pressing and cutting spare parts can move freely to adjust the distance and easy to change molds.

5. Manipulator towing, adjustable travel range, it can be suited for blister packing of various sizes. Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape etc.
6. Two options for operation: PLC control, B: push-button operator, touch screen English operation.

Working process: Automatic film spreading-preheating-forming-filling-heat sealing-cutting.

Model	RF 80-105	RF 110-150	RF 155-180	RF 185-260
Punch frequency	10-33TPM	10-35TPM	10-35TPM	10-40TPM
Max. forming area	105*70MM	145*110MM	175-110MM	250-140MM
Max. forming depth	26MM or Customized
Filling volume	0.5-75ML or Customized
Stroke range	30-80MM	50-120MM	50-120MM	40-140MM
Air pressure	0.4-0.6MPA
Total power supply	2.8KW 220V 50HZ	3.8KW 380V 50HZ	3.8KW 380V 50HZ	8.5KW 380V 50HZ
PVC hard film	(0.15-0.5)*110MM	(0.15-0.5)*150MM	(0.15-0.5)*180MM	(0.15-0.5)*250MM
PTP aluminum film	(0.02-0.035)*110MM	(0.02-0.035)*150MM	(0.02-0.035)*180MM	(0.02-0.035)*250MM
Dialysis paper	50-100G*110MM	50-100G*150MM	50-100G*180MM	50-100G*250MM
Mould cooling	Tap water or Recycling water
Outline dimension	18405901100MM	23156351405MM	25506401600MM	32507101700MM
Weight	420KG	820KG	870KG	1400KG
