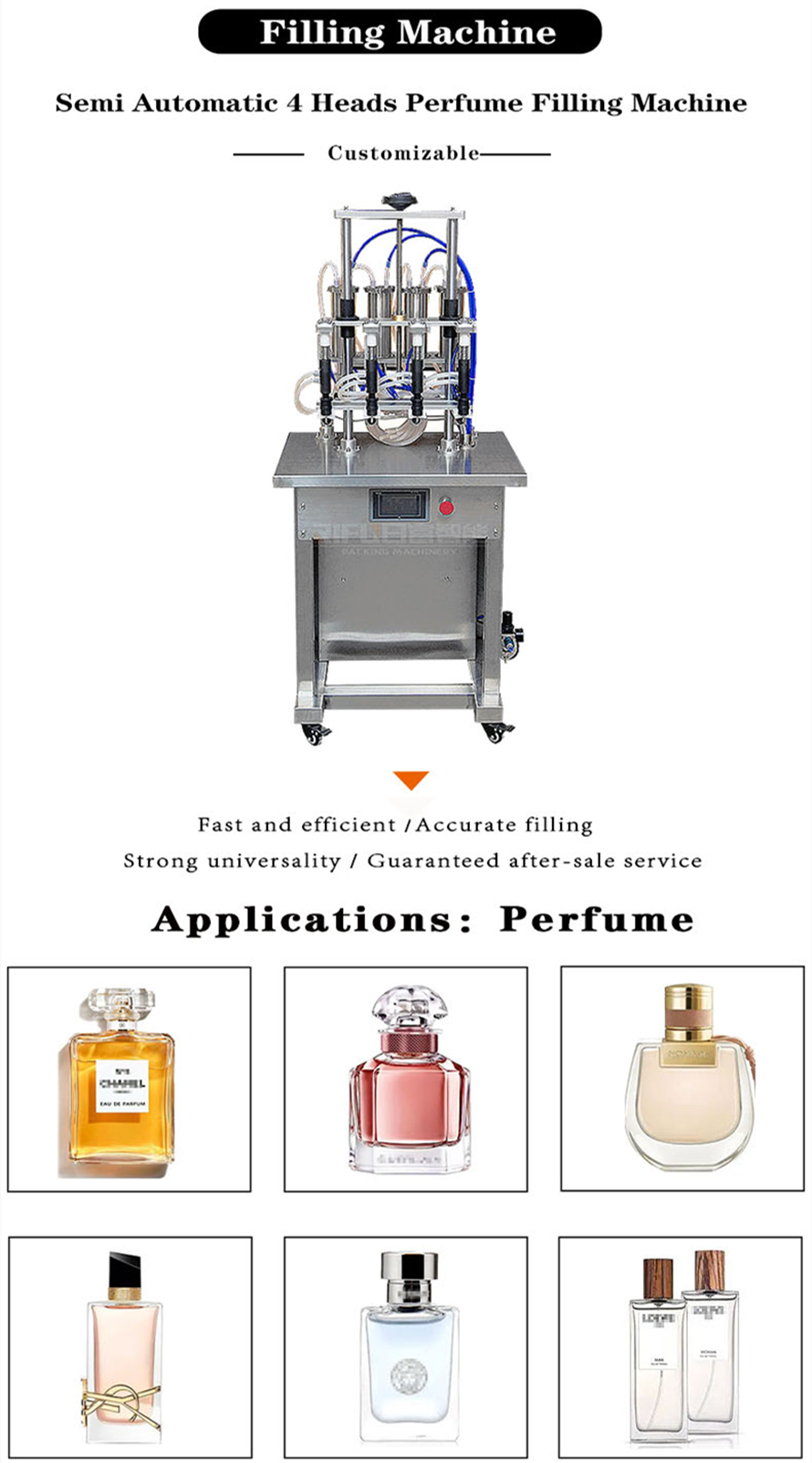

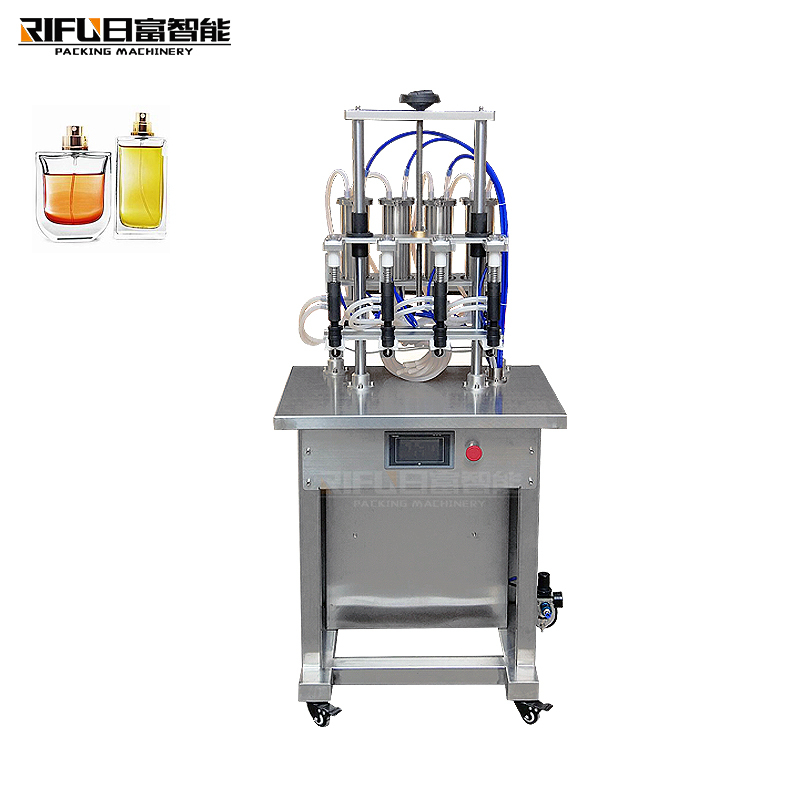

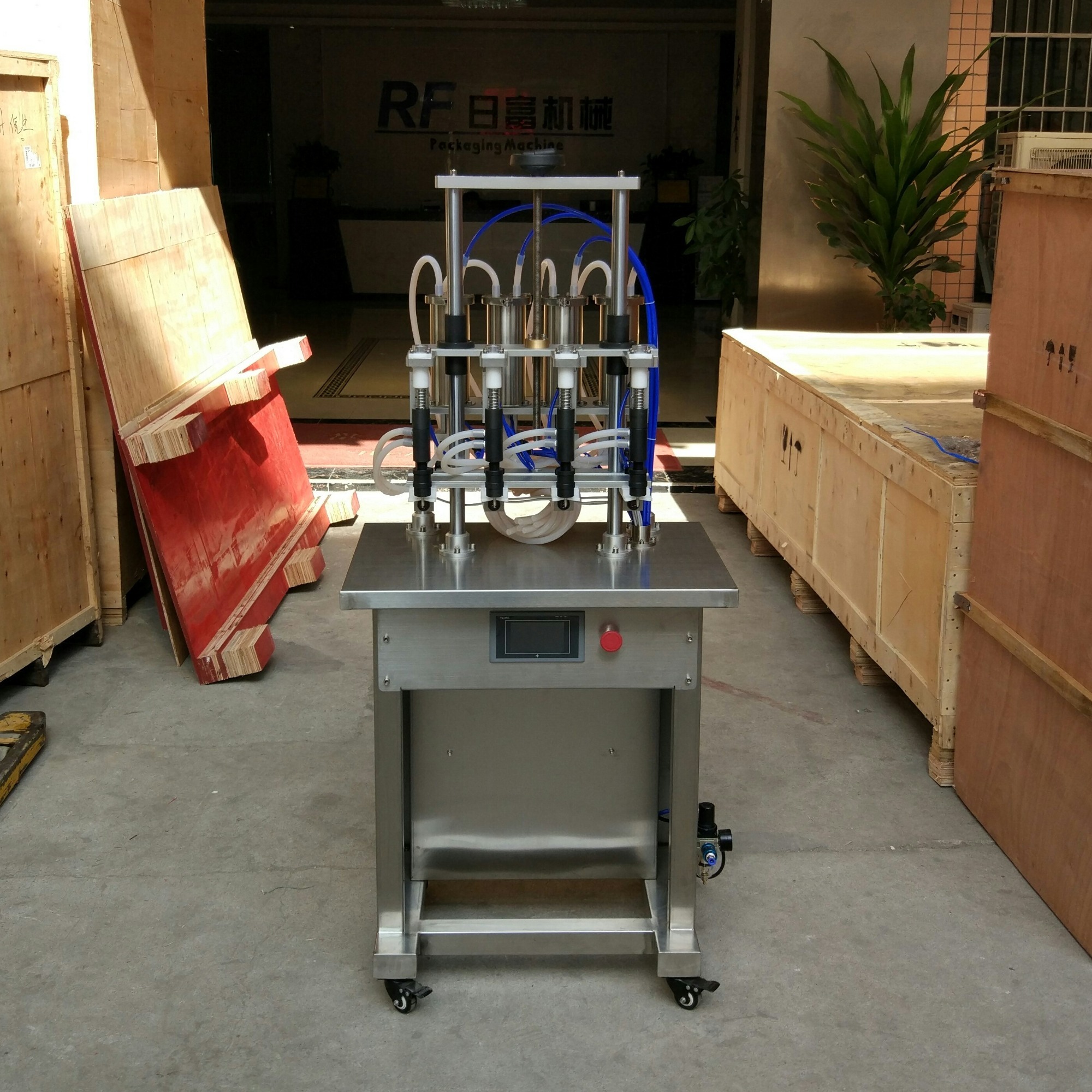

Semi-auto 4 heads vacuum negative pressure filling machine

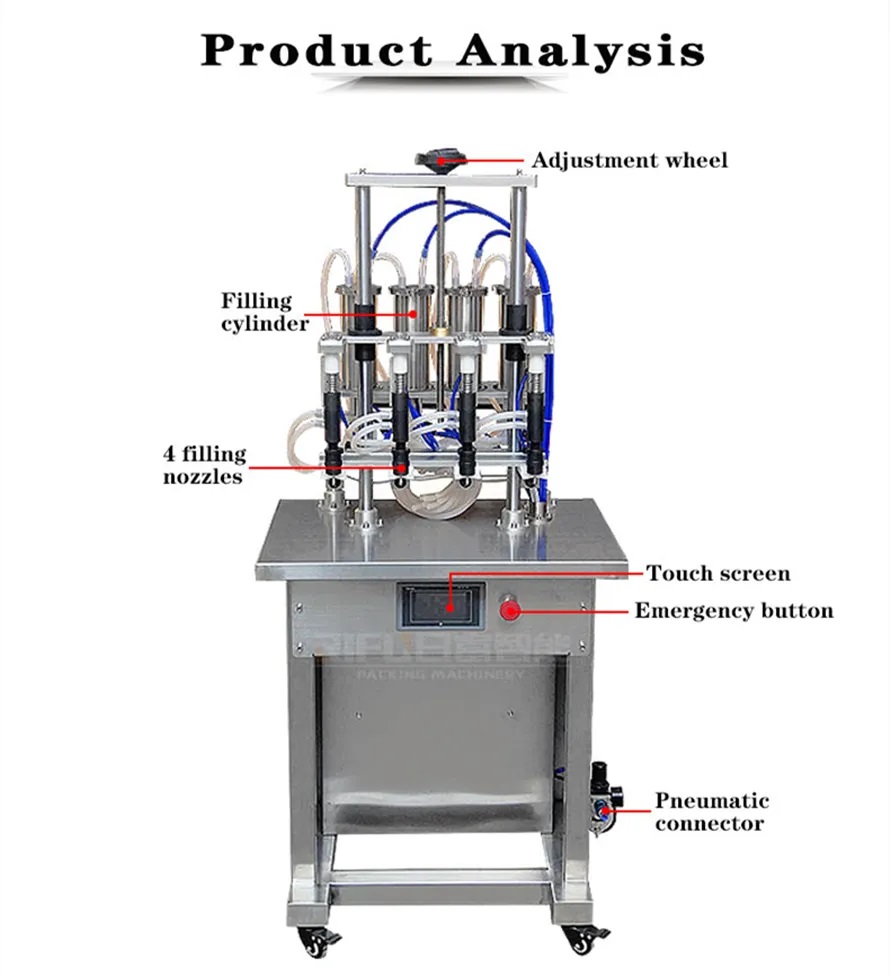

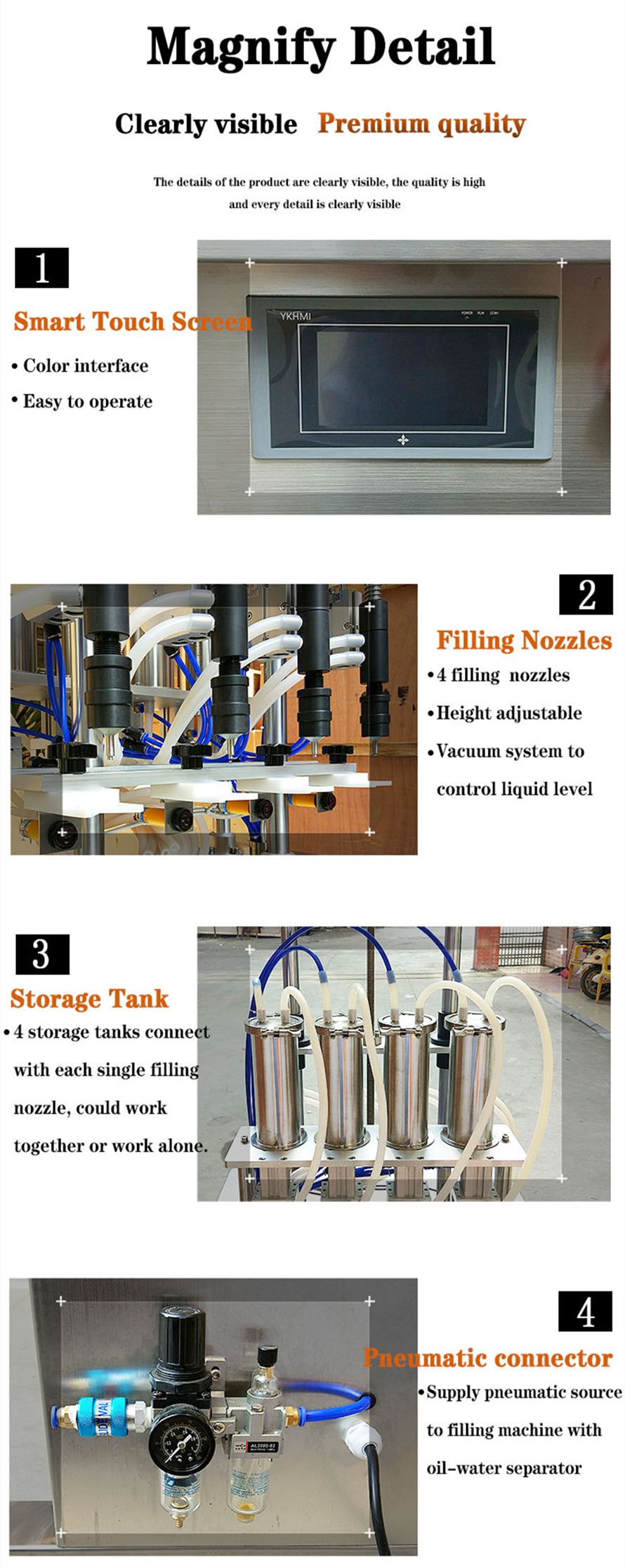

The semi-automatic vacuum negative pressure filling machine is purely pneumatic equipment. Using PLC time control, electric eye detection, each filling head can be separately controlled and filled,no bottle no filling.This machine has the characteristics of filling and constant liquid level.The filling head has double-layer pipes, one for filling, and the other for pumping the excess materials back into the raw material barrel. Reduce the waste of raw materials.The filling volume is determined by the depth that the filling head extends into the container,so the filling level will remain the same no matter whether the bottle volume is the same.The machine is especially suitable for filling perfume and liquid medicine.
| Bottle height |
50-300mm |
|
Filling nozzles |
4 |
|
Filling range |
15-300ml |
|
Capacity |
20-40 bottles/min(Mainly depend on filling volume) |
|
Adjustable liquid High-Level |
26-50mm |
|
Adaptable environment temperature |
0-30℃ |
|
Power |
380V/50Hz |
|
Motor power |
80W |
|
Dimensions |
660*470*1330mm |
|
Weight |
70kg |
|
Packaging type |
Export wooden case |
