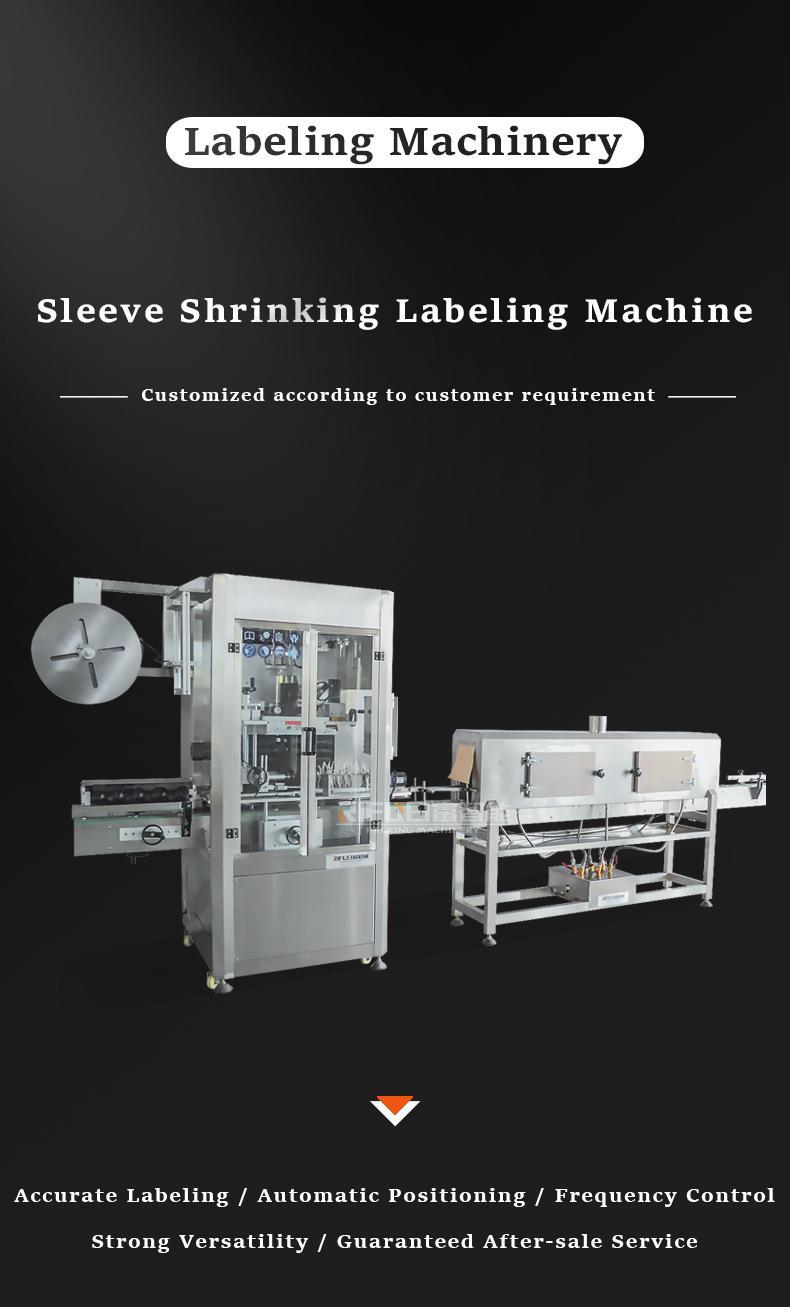

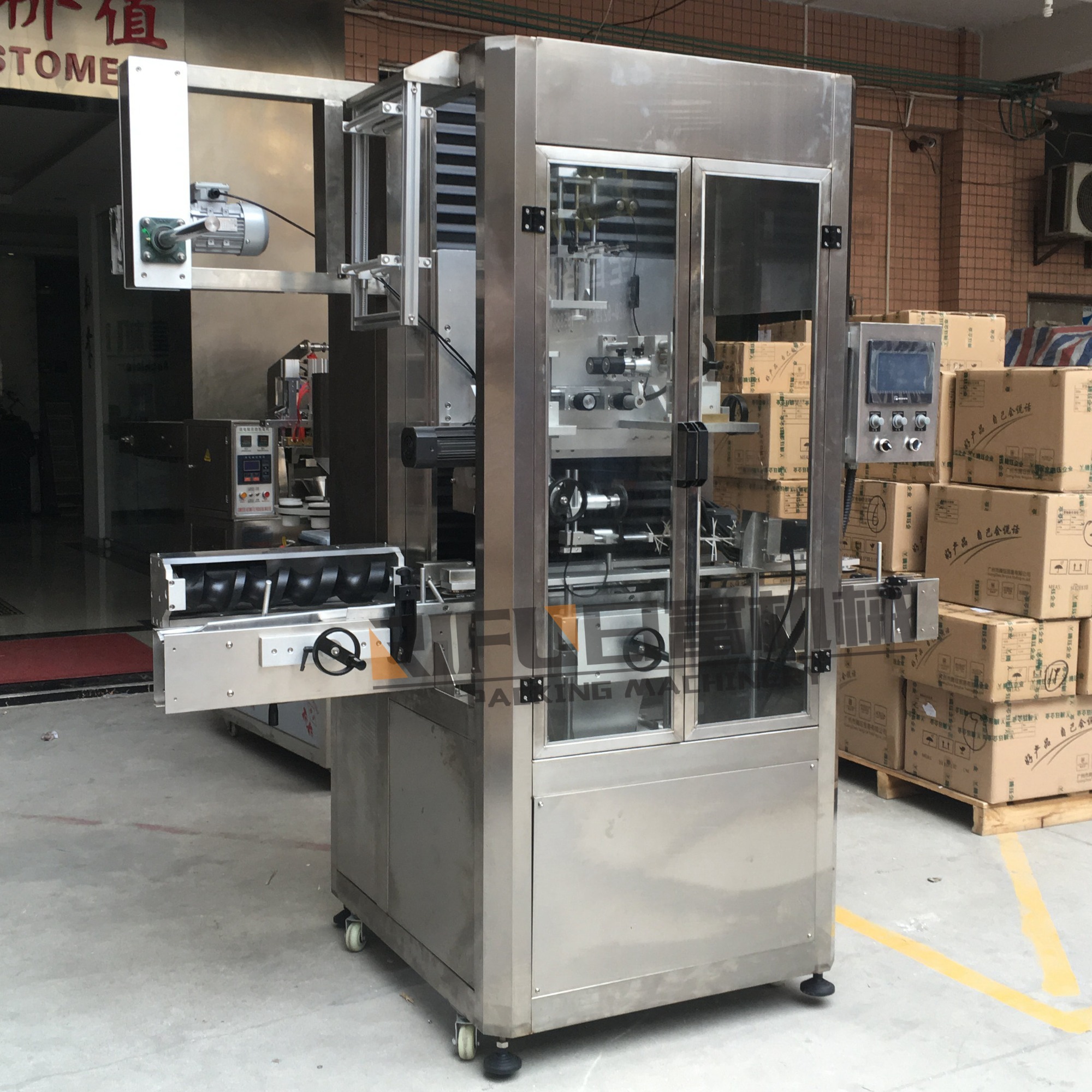

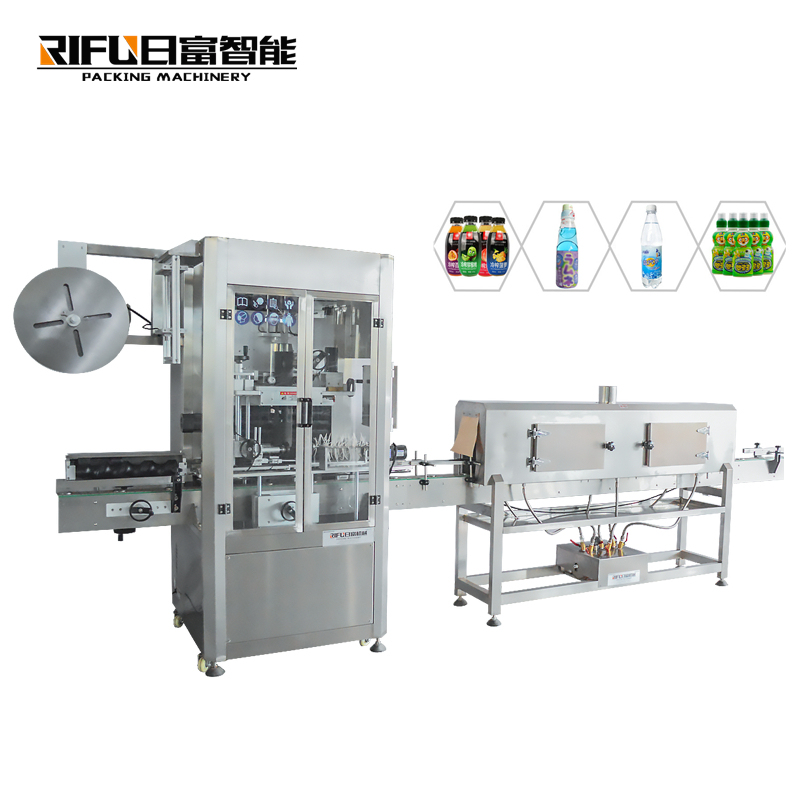

Automatic Thermal Shrink Sleeve Labeling Machine

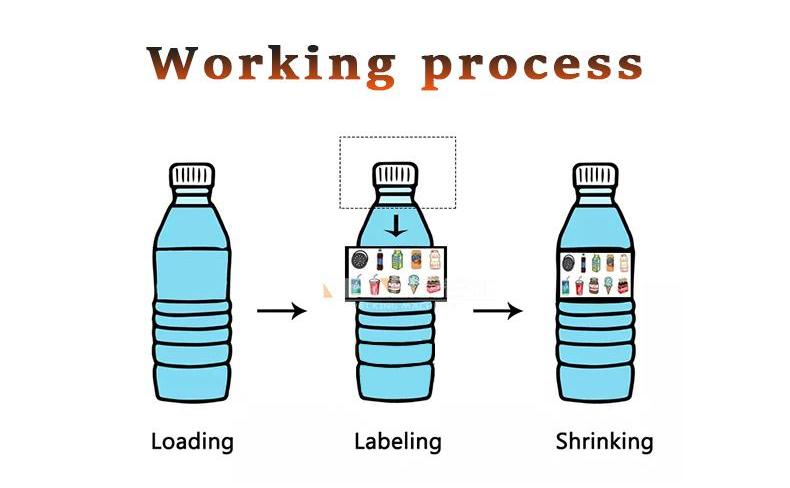

This fully automatic sleeve shrinking labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. Widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

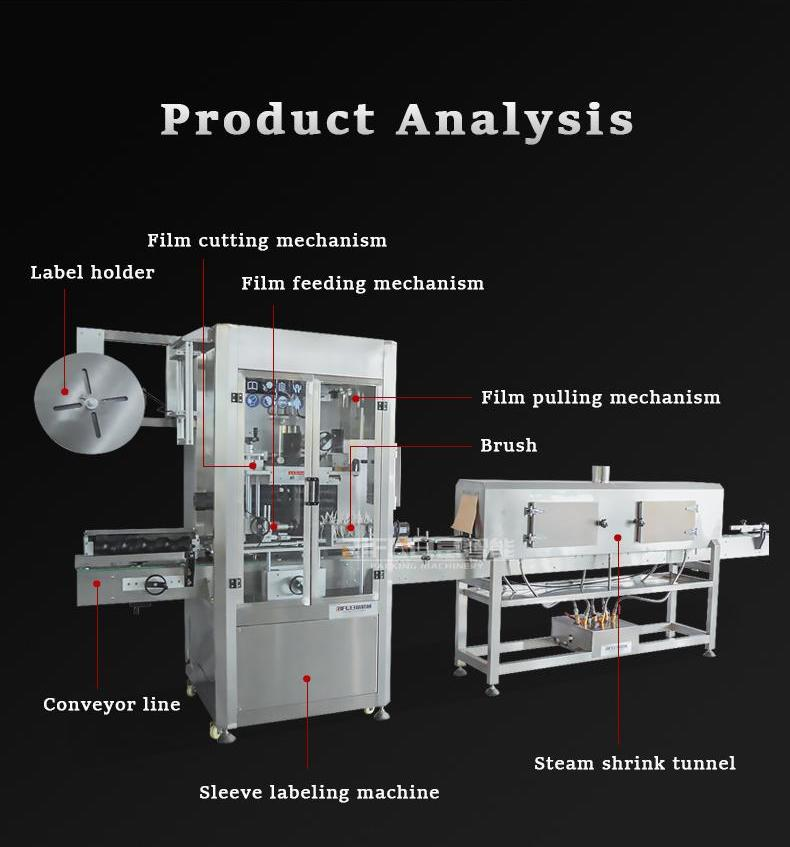

Advantages:

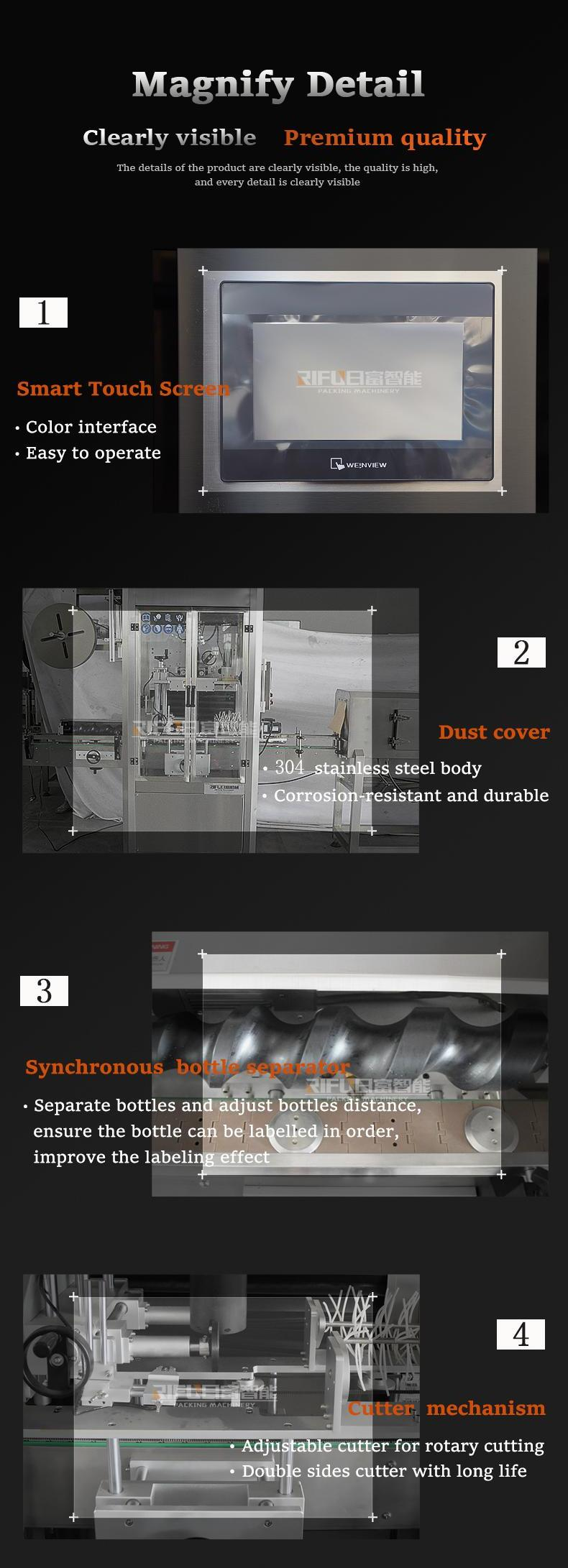

1. Stainless steel 304 of host machine by all cover: simple ,athletic,beautiful apperance.
2.Adjustable cutter box: rotary cutting technology,double sides cutting edges.
3.Center guide pillar:adopts POM material,more durable and stable to transmit labels.
4.Control cabinet: button and touch screen control,easy operation.
5.Label-controlling electric-eye shelf: unique combination of tail and electric to improve the precision of cutting of membrane material.
6.Drive system: with high power of Servo Motor,more forceful.
7.Independent material feeding shelf: fast and precise to change labels.
| Machine model |
|
| Voltage |
AC380V,50/60HZ |
| Power |
3000W |
| Applicable bottles diameter(mm) |
φ25 ~φ56mm (A),φ56~φ86 mm(B) ,φ86 ~φ106mm(C)(mm) |
| Lable Length (mm) |
25 mm ~300 mm |
| Conveyor Width(mm) |
102mm |
| Internal diameter of paper tube(pcs/min) |
5''~ 10'' |
| Production Speed |
100 bottles/min(it depends on product) |
| Dimension(L×W×H)(mm) |
L1500mm×W1055mm×H2000mm |
| Weight |
600kg |
