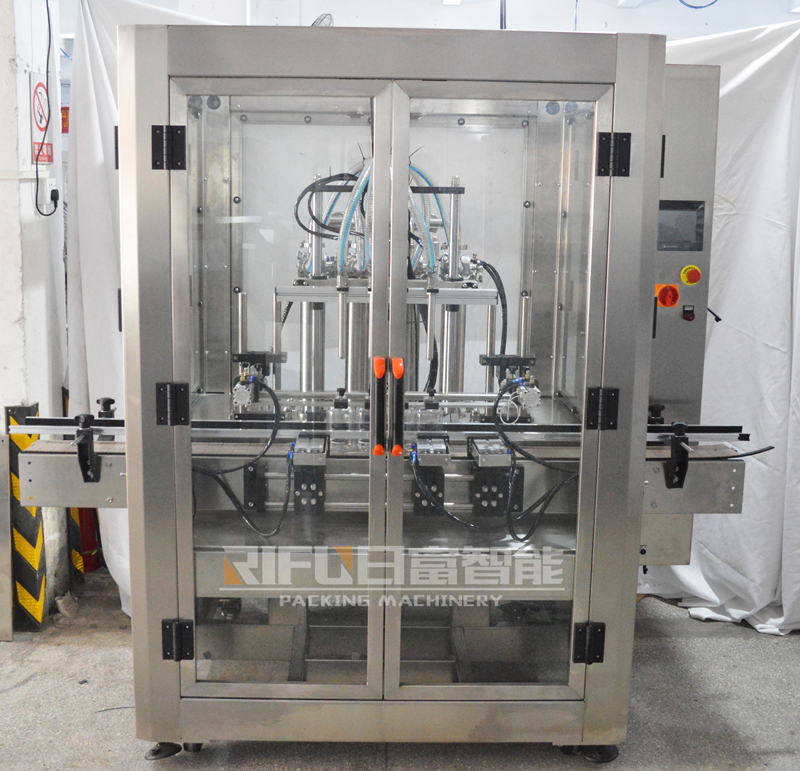

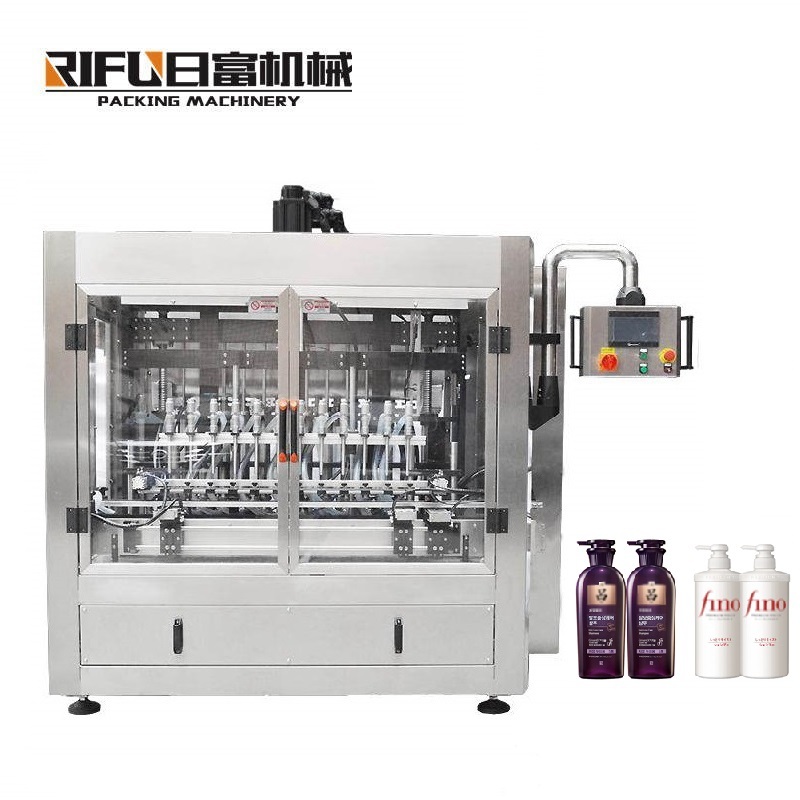

Automatic piston tracking filling machine

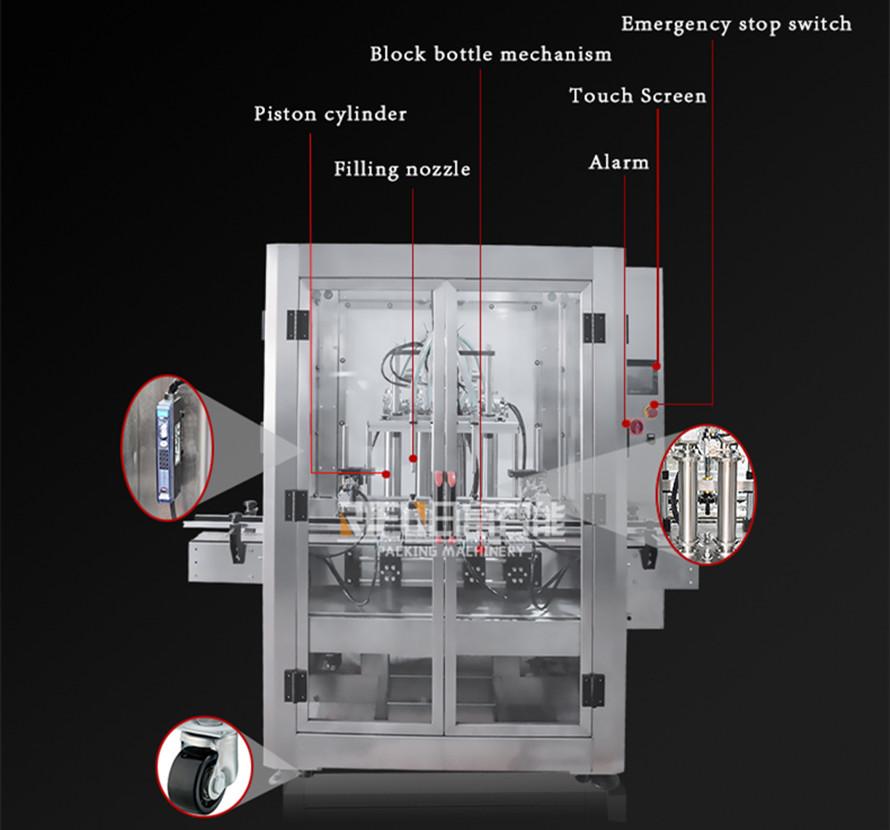

Piston tracking filling machine is suitable for filling viscous liquid,such as paste,honey,jam,sauce,oil,etc.It is equipped with servo motor and only need to enter the certain number to adjust filling range.Compared with other filling machine,this tracking type filling machine can control filling nozzle follow moving bottles during filling work.It reduce production error and improve filling accurately.Widely used in cosmetics,seasonings,washing and care products and other industries.
|
Model
|
RF-GSF-6
|
|
Filling range
|
100-1000ML
|
|
Filling speed（B/H）
|
1440-1800
|
|
Metering Accuracy
|
±1%(Accuracy varies by capacity)
|
|
power, voltage
|
1.75KW/220V
|
|
Working air pressure
|
0.6-0.8MPA
|
|
Silo volume
|
120L
|
|
Gas consumption
|
6-7KG/cm²
|
|
Machine weight
|
450KG
|
|
Machine Size（mm)
|
2000*1300*2100
|
Guangdong Rifu Intelligent Equipment Co.,Ltd is an efficient and technology enterprise.Professional manufacturing filling machine,capping machine,labeling machine,filling sealing machine,vacuum packing machine,vertical packing machine,heat shrinking packingmachine,cellophane wrapping machine,etc.We have own excellent team and a high level of equipment manufacturing
personnel.Dedicated to strict quality control and thoughtful customer service.Has many of the world's countries and regions to establish long-term and friendly business.
