Corner edge packing tape sealing carton edge sealing machine

Item No.: 00249
FOB Price:
US $4000 - 6000 / Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Month
Port:
Guangzhou
Payment Terms:
T/T,Western Union,paypal
Description
Description

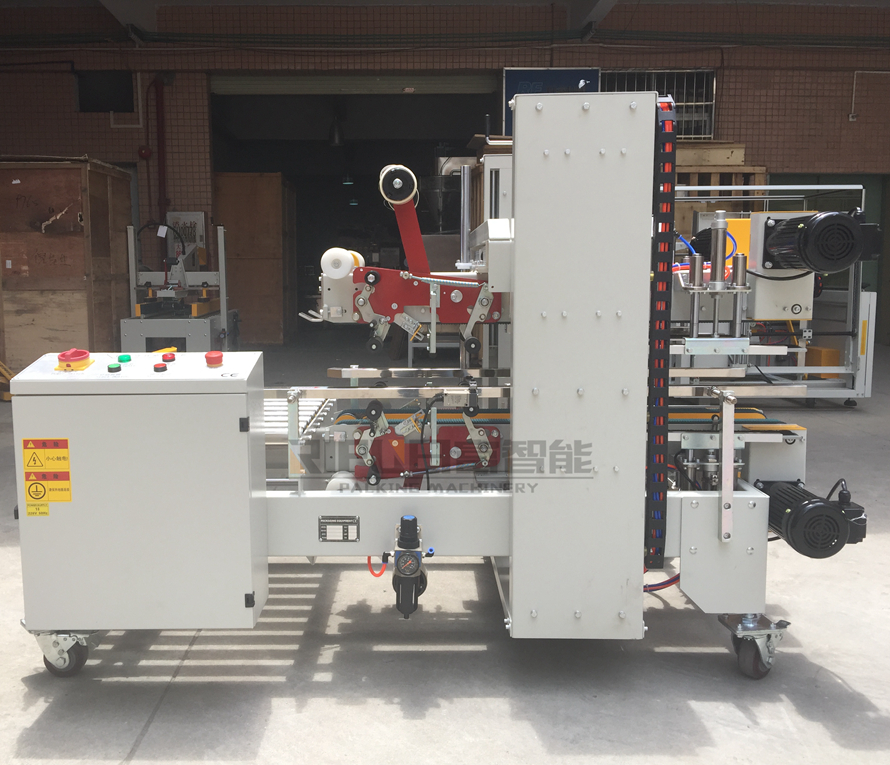

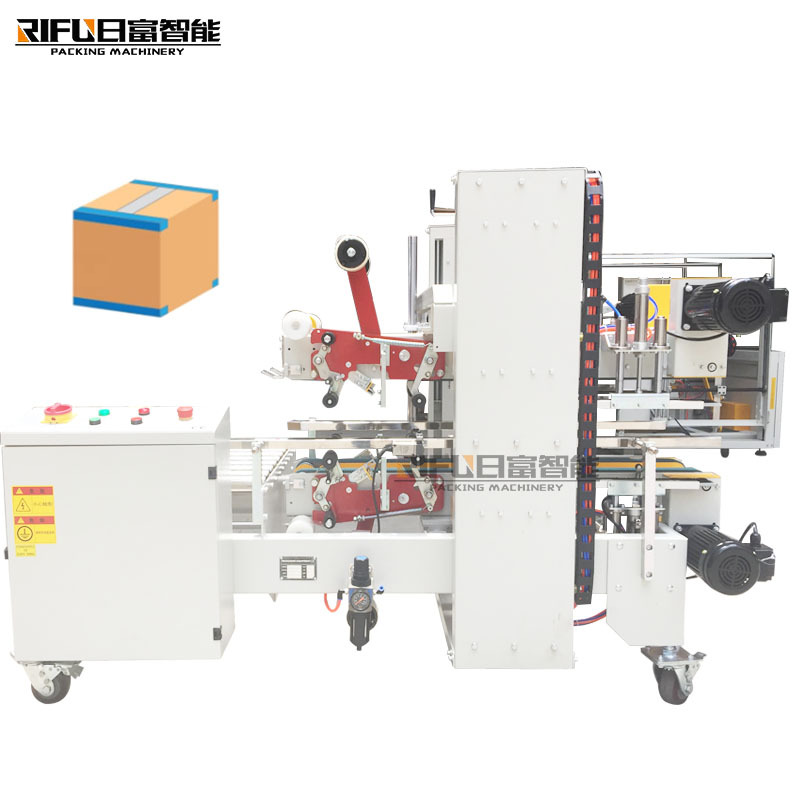

H Type Carton Corner Edges Sealer

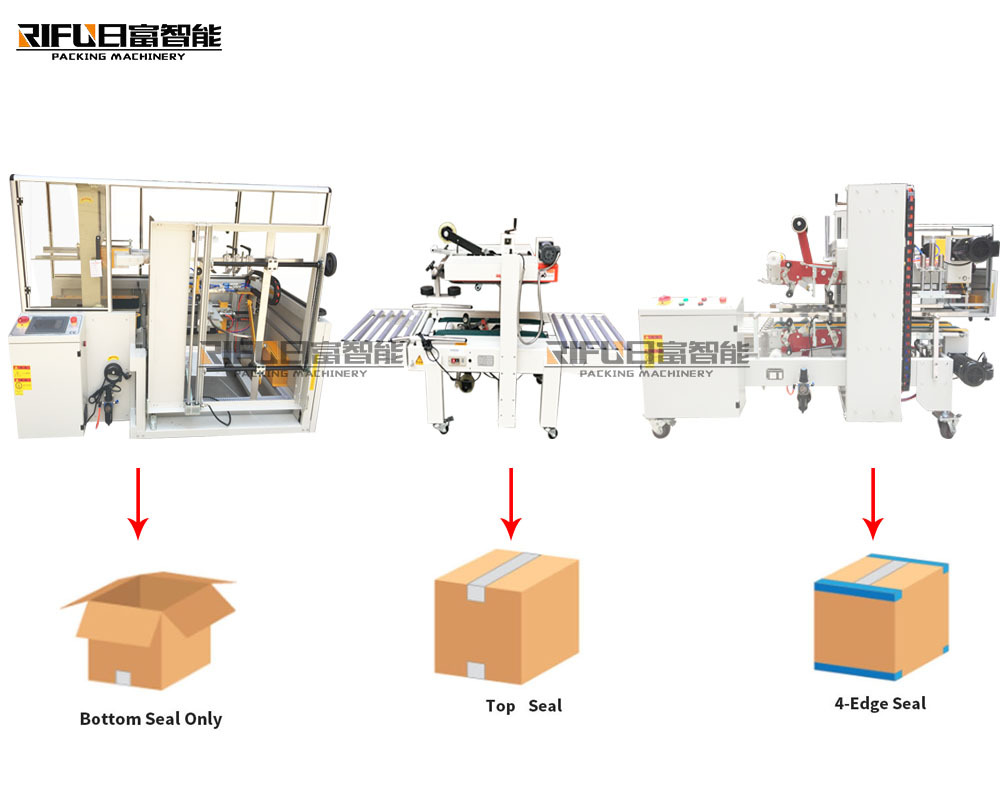

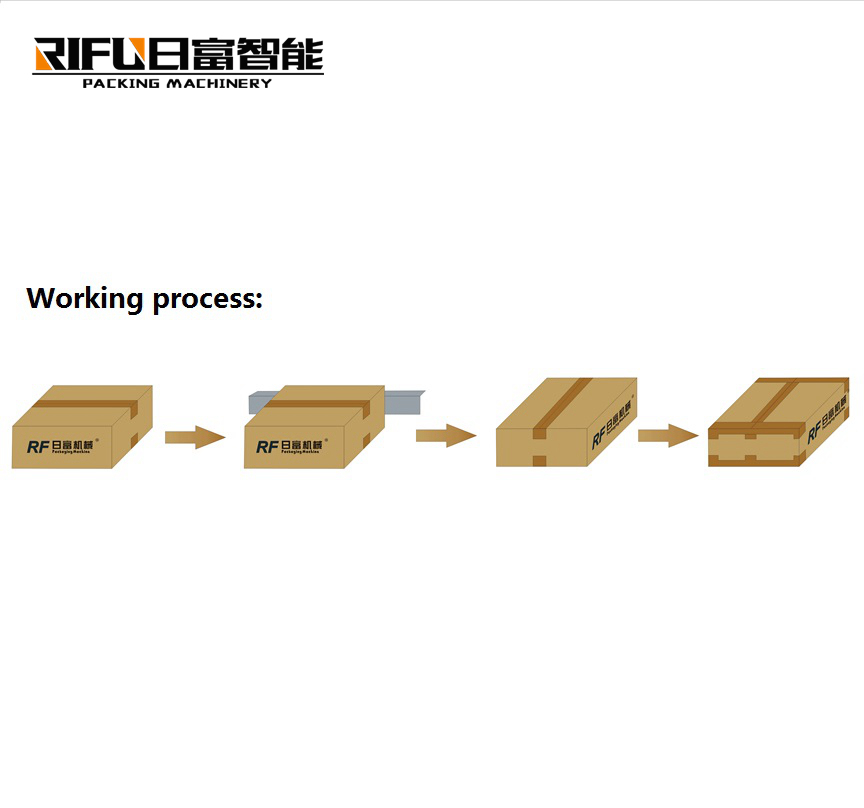

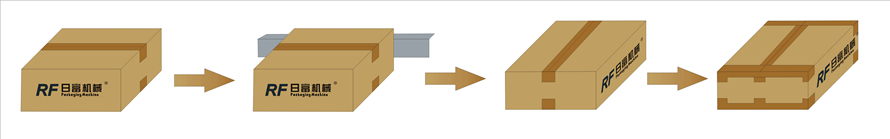

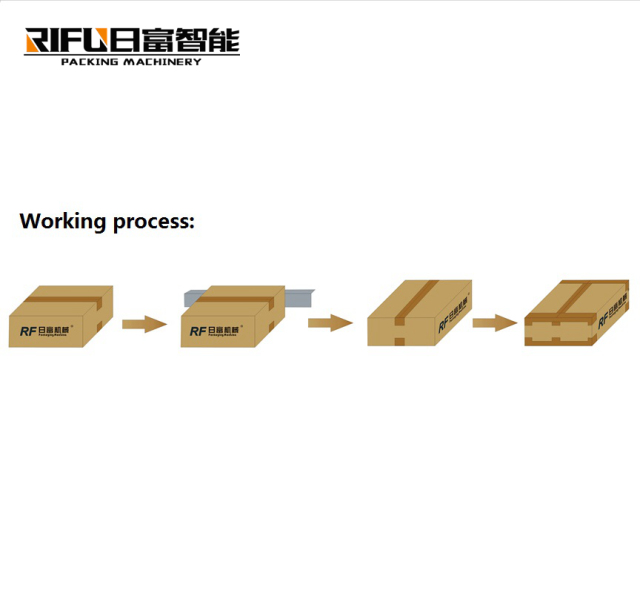

Auto corner and side carton sealer is after carton seal top and bottom, to 90 degree turn device, through push device push carton into machine, Photoelectric automatic detection, PLC control, manually adjust height and width, seal corner and side. Tape folding Angle without drape. Suitable for external packaging high requirements of customers. Machine use in food, medicine, toy, tobacco, cosmetics, electronic and others




Packing speed 480-600pcs/h
Carton Max Size L320mm×W200mm×H180mm
Carton Min Size L600mm×W500mm×H500mm
Power Supply 110/220V 50/60Hz 1Phase
Power
1050W
Adhesive Tape Width 48/60/75mm
Air Consumption 200NL/min
Air Compressing
0.6Mpa
Table Height 600+50mm
Machine dimension L1900×W1230×H1530mm
Machine weight 400kg
