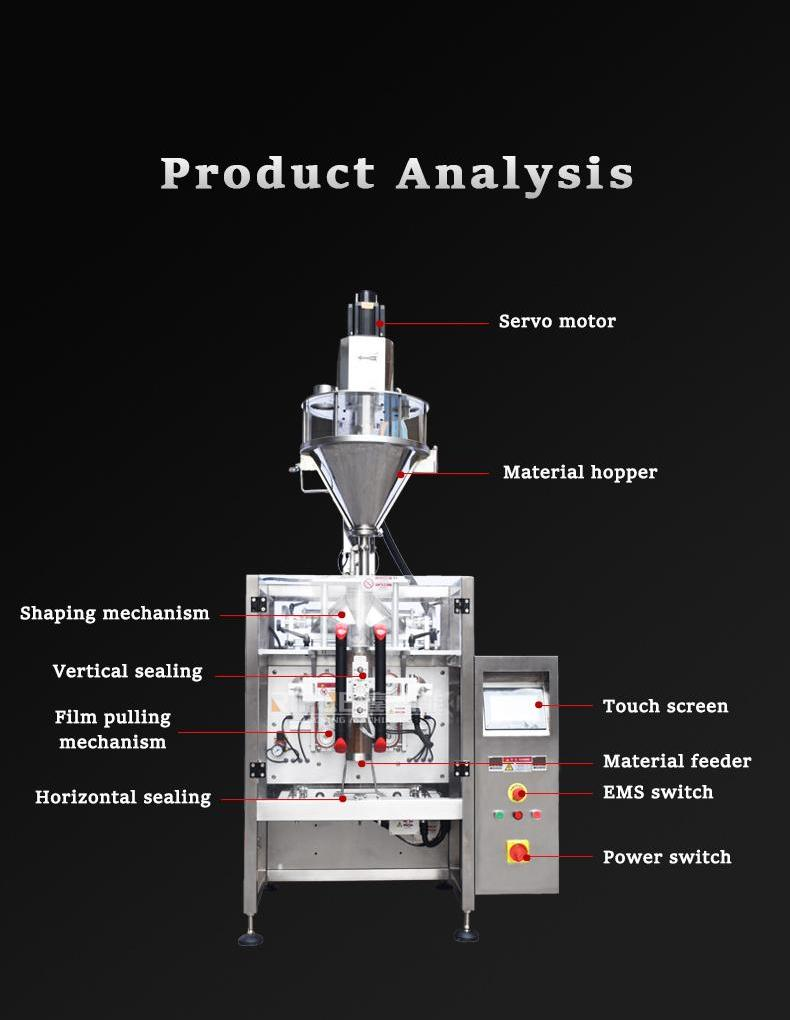

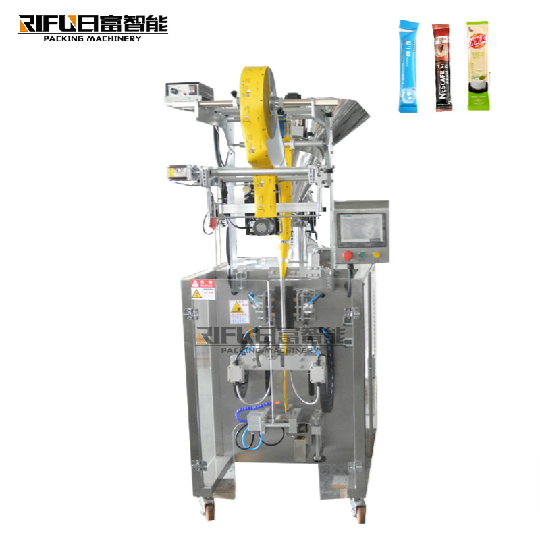

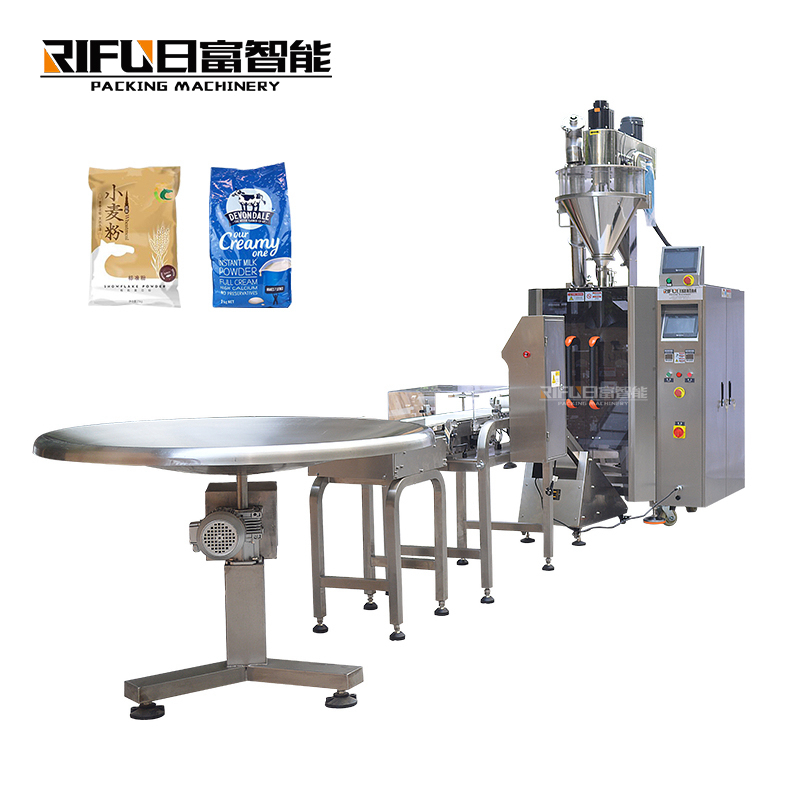

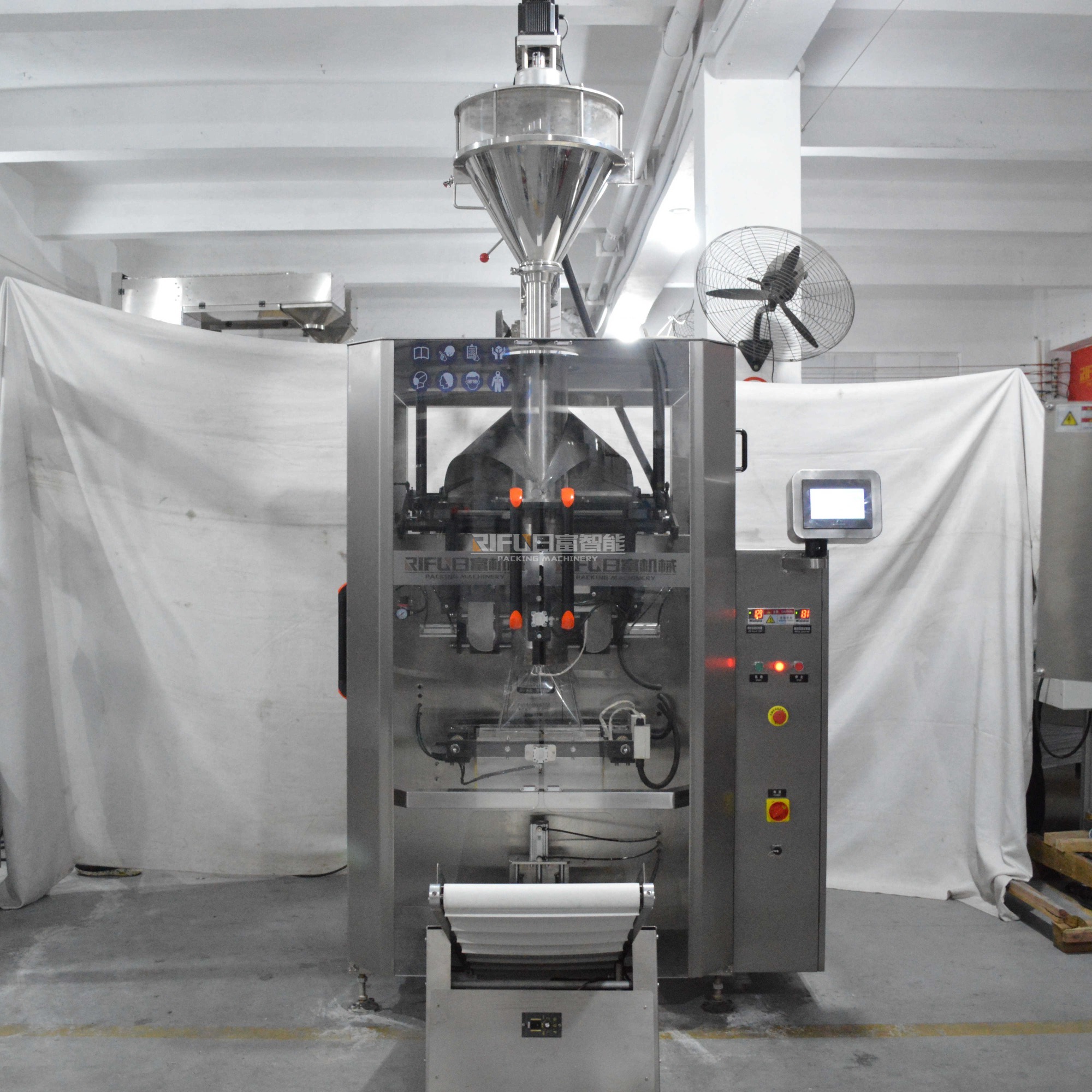

Automatic powder packing machine
The powder packing machine is suitable for filling and packing a variety of powder, such as spice, flour, milk powder, coffee powder, fruit powder, cocoa powder, grain powder, wheat flour, vitamin powder, chemical powder, paint powder, etc. It completes the whole procedure of filling, measuring, bag making, date printing, charging(exhausting), product out automatically.

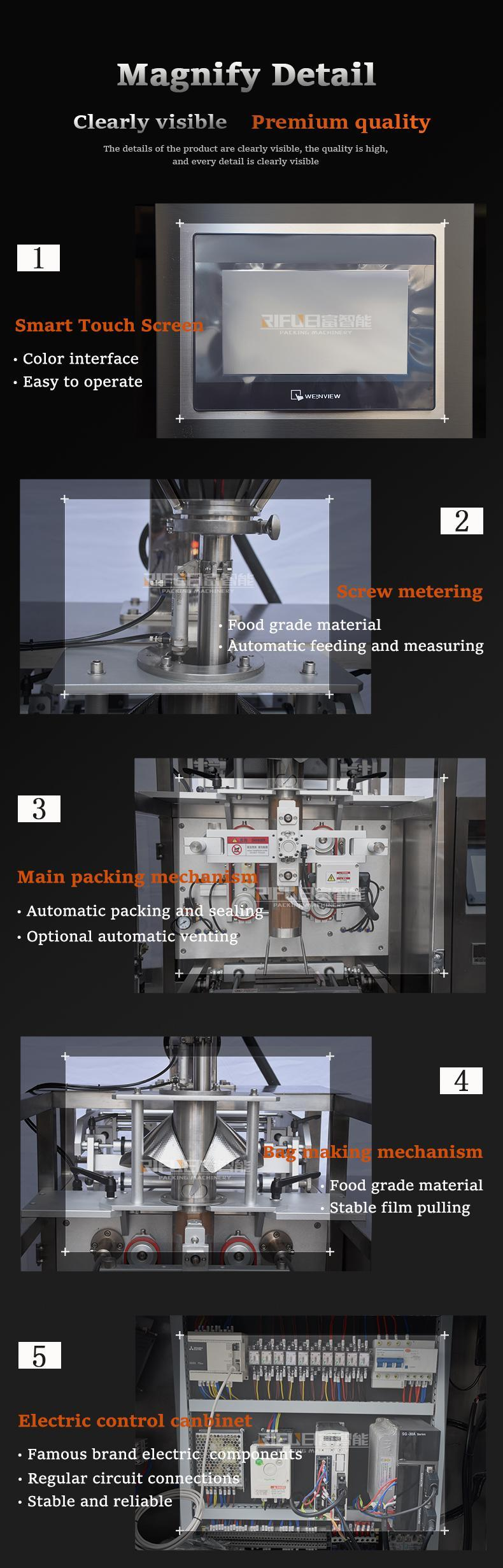

Main Features
1) Simple structure,easy installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Touch screen clearly shows working state and operation indicator, very easy to operate.
4) Mitsubishi PLC provide stable working procedure.
5) OMRON temperature controller, temperature difference can be controlled within 2 degrees.
| Model |
RF-FJA |
|
|
AC 220V/50HZ 110V/60HZ |
| Power |
3KW |
| Gas source |
0.65(MPa) |
| Packing speed |
45-60bag/min |
| Packing Film |
Composite material:OPP/CPP,OPP/CE,MST/PE/PET/PE |
| Contact parts |
Food Grand Stainless Steel SS 316 / SS 304 |
| Gas consumption |
0.4(m³/min) |
| Machine material |
Stainless steel |
| Weight |
500kgs |
| Outline dimension |
(L)1400mm×(w)1150mm×(H)1450mm |
| Additional Attachments |
Batch Cutting Device, Pneumatic Coding Device, Nitrogen Flushing |
