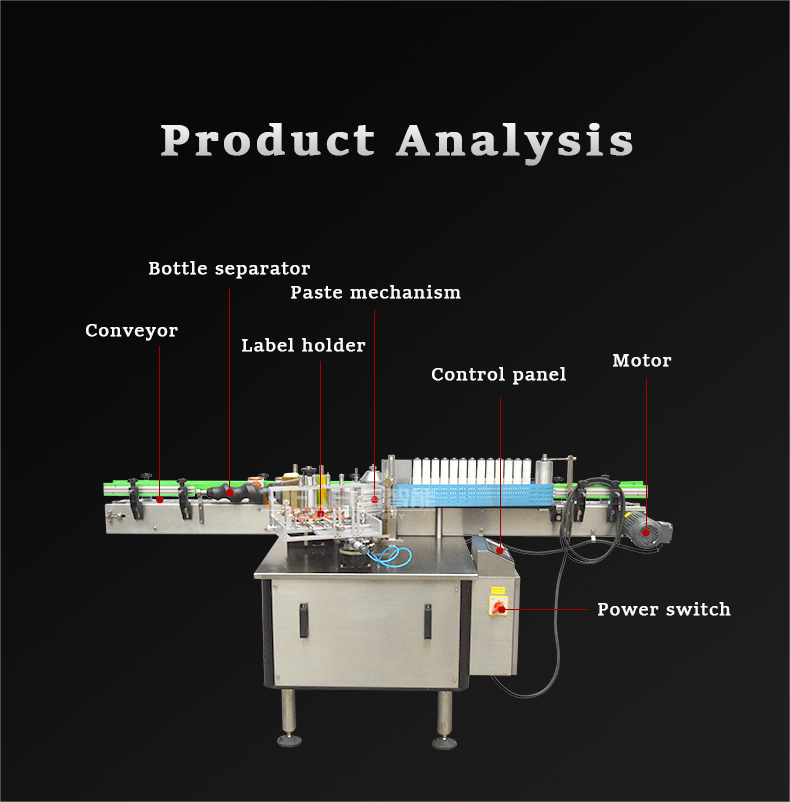

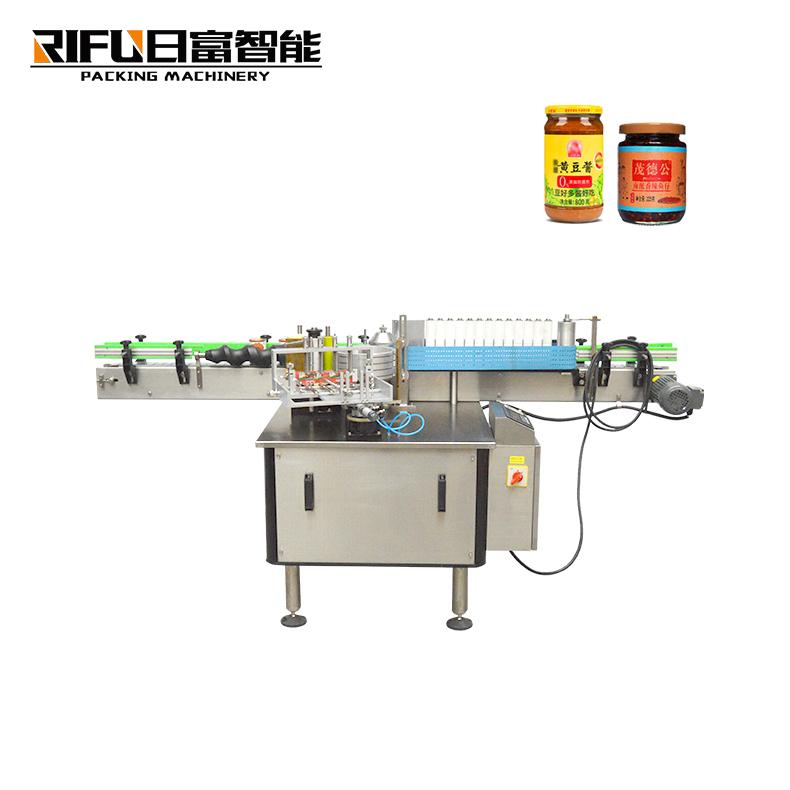

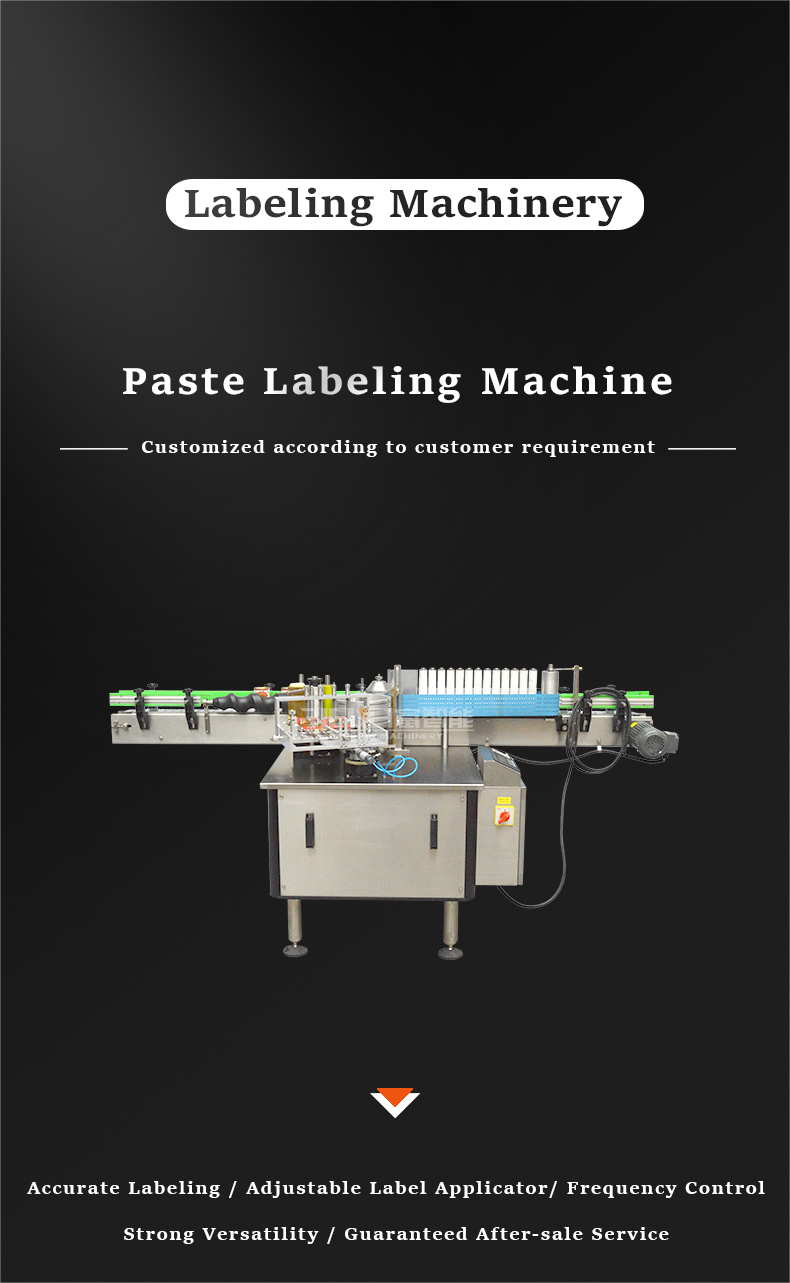

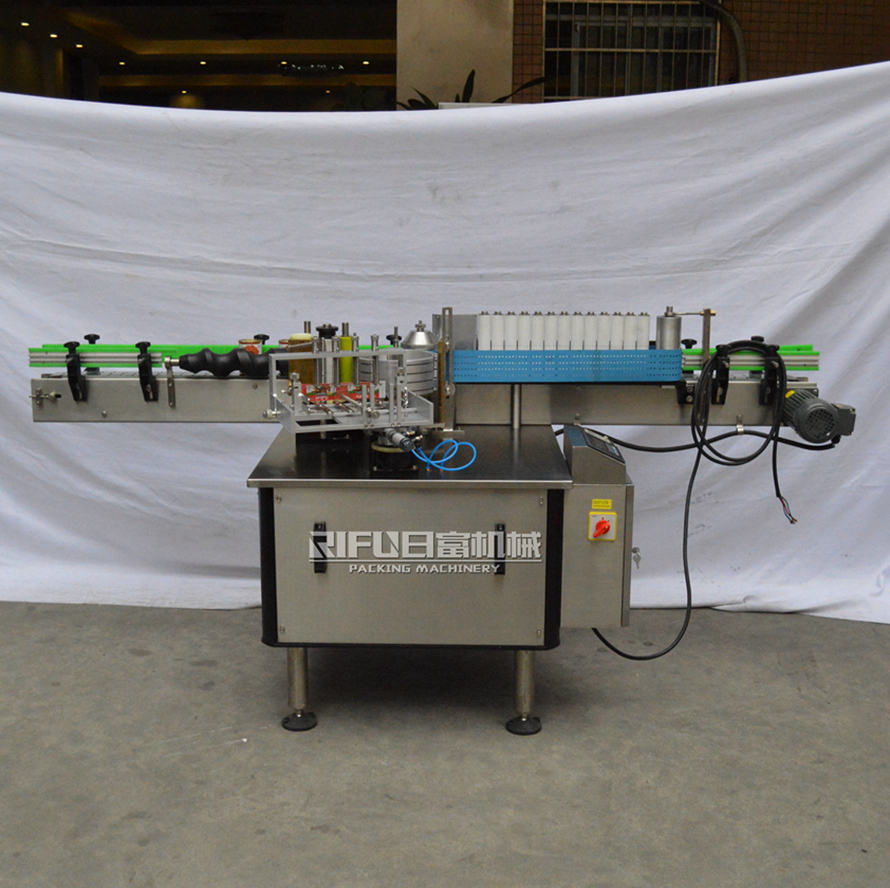

The machine is suitable for food, condiment, medicine, wine, oil, cosmetics and other industries various round bottle paste labeling. The whole machine with exquisite design, remove unnecessary complexity and heavy machinery. Maintenance and repair no need professionals, as long as the simple adjustment. The whole machine is made of 304 stainless steel and high grade aluminum alloy, all sensors are Japan and Germany advanced sensor uses full mechanical drive, the transmission part is closed and the oil tank is turned round and light, the fault is small and the noise is small, and the motor load is low. Plate and plate conveyor belt is made of stainless steel, no rust, durable, clean and easy maintenance. It can work separately, can also be designed to become a disc operation production line, the cover area is small and the machine can move arbitrarily. Small size circular container can be added printing device according to users.
Bottle size | Φ25-100mm |
Label size | (L)50-130mm (H)40-110mm |
Adhesive |
Polyvinyl Acetate Emulsion |
Labeling accuracy | ±1mm (material and label sizes are not counted in) |
Labeling speed | 60-150pcs/min (relate to material and label size) |
Working air pressure |
0.4~0.6Mpa |
Voltage | 1.5KW AC 220V 50/60HZ |
Weight | 350kg |
Overall dimension (L×W×H) |
2400*950*1000mm |
