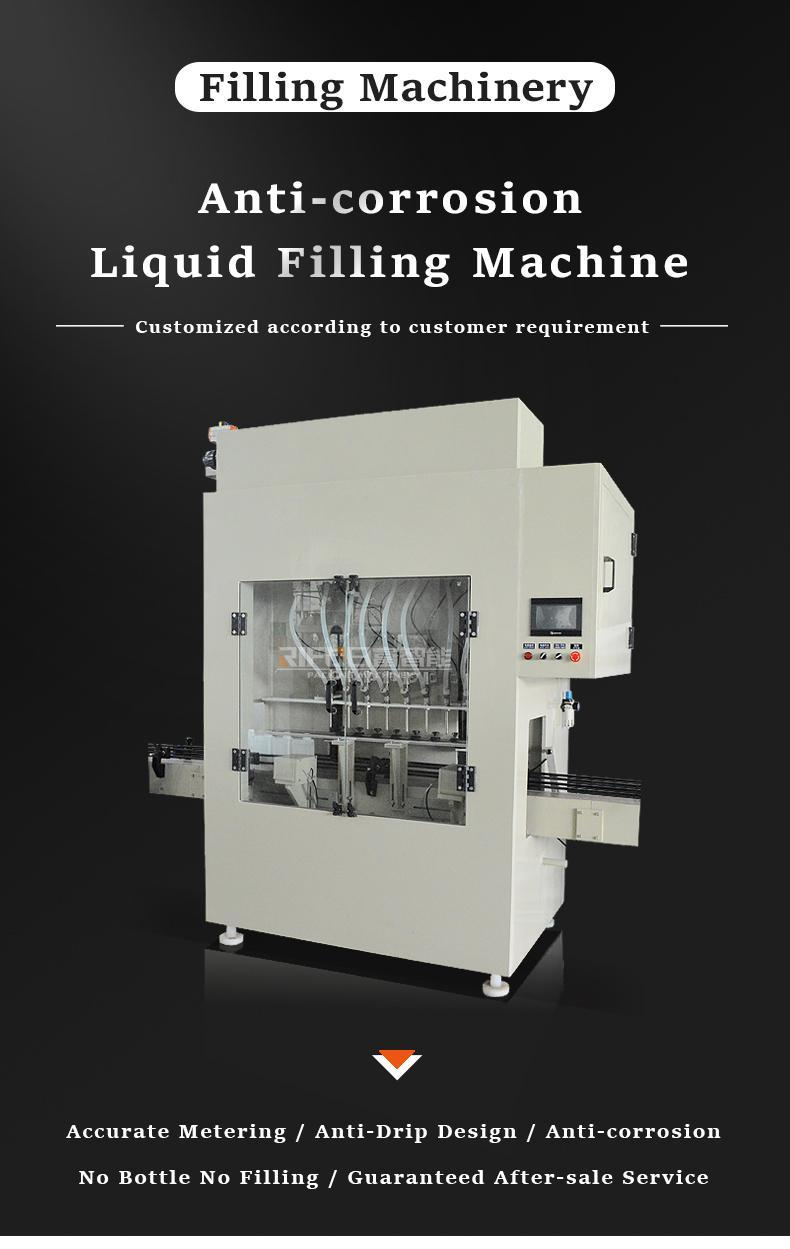

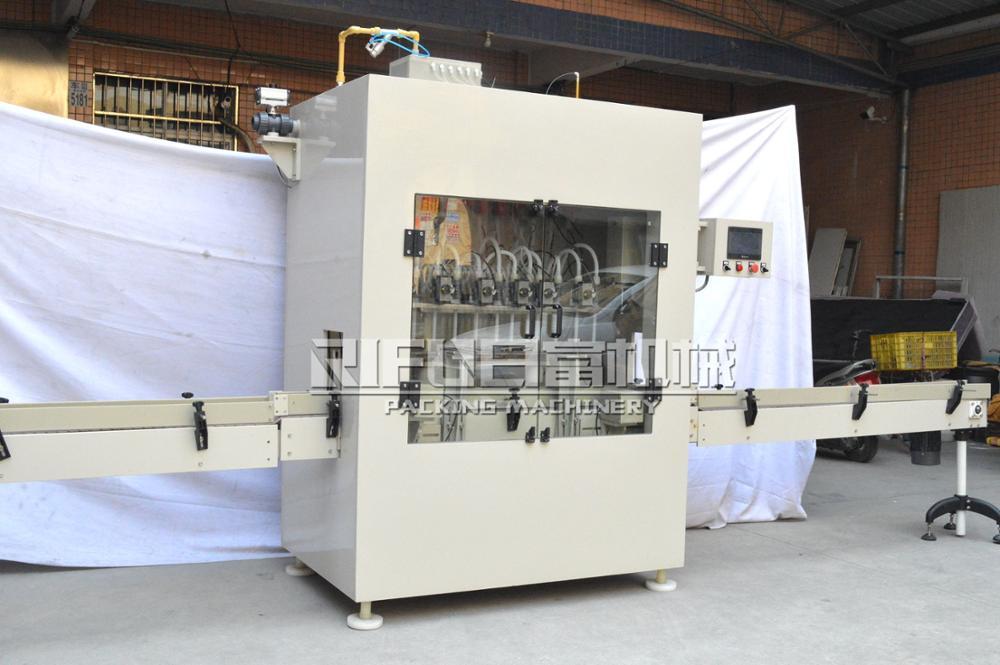

This machine is a linear type automatic gravity vacuum filling machine. Specially used for filling strong corrosive liquids and liquids such as cosmetics that can't contact the metal. The parts of the machine that contact the liquids are all made of nonmetal anticorrosive materials. The whole machine adopts non-metallic materials, especially suitable for the filling of super - corrosive, and can meet the requirements of various specifications.
| Machine model | RF-12G |
| Filling range | 100-1000ml(can be customized) |
| Filling speed | 35-55 b/m |
| Filling accuracy | ±1%(it depends on filling volume and material) |
| Working pressure | 0.6-0.8MPA |
| Tank volume | 200L(Customizable) |
| Air consumption | 0.6-0.9 MPA |

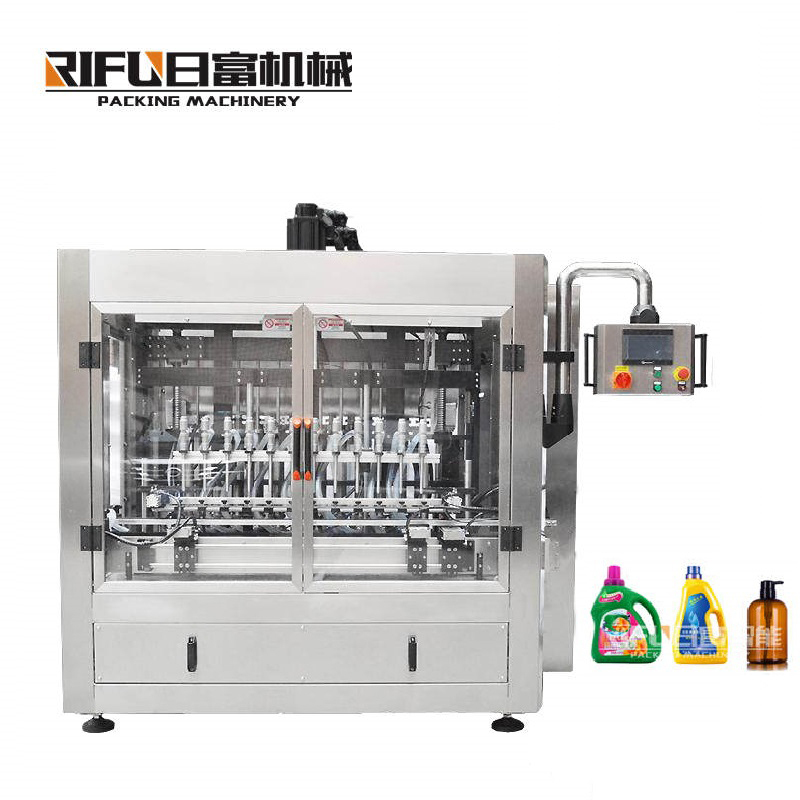

| Filling head | 12 heads |
| Power specifications | 380v/220V 50/60hz 2.5kw |
| Machine weight | 550kg |
| Outline dimension | 2000×1400×2200 mm |
