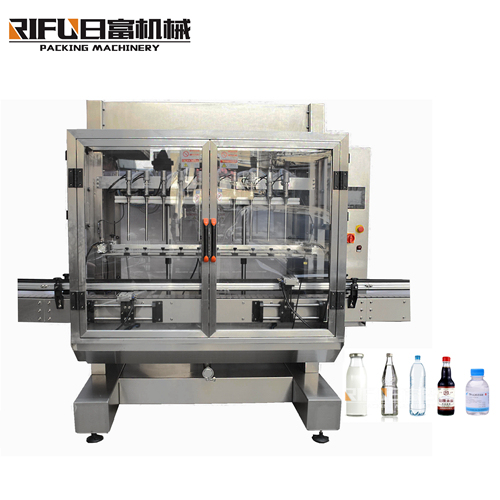

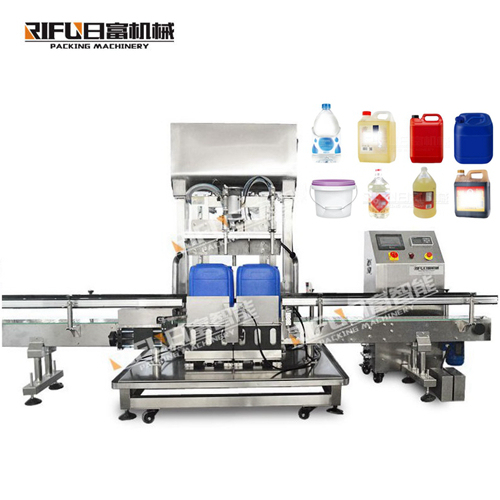

Automatic gravity flow beverage juice liquid filling machine

Item No.: RF-GZC
Min.Order Quantity: 1 Set / Sets
Supply Ability: 500 Set / Sets per Month
Port: Guangzhou
Payment Terms: T / T, Western Union, paypal

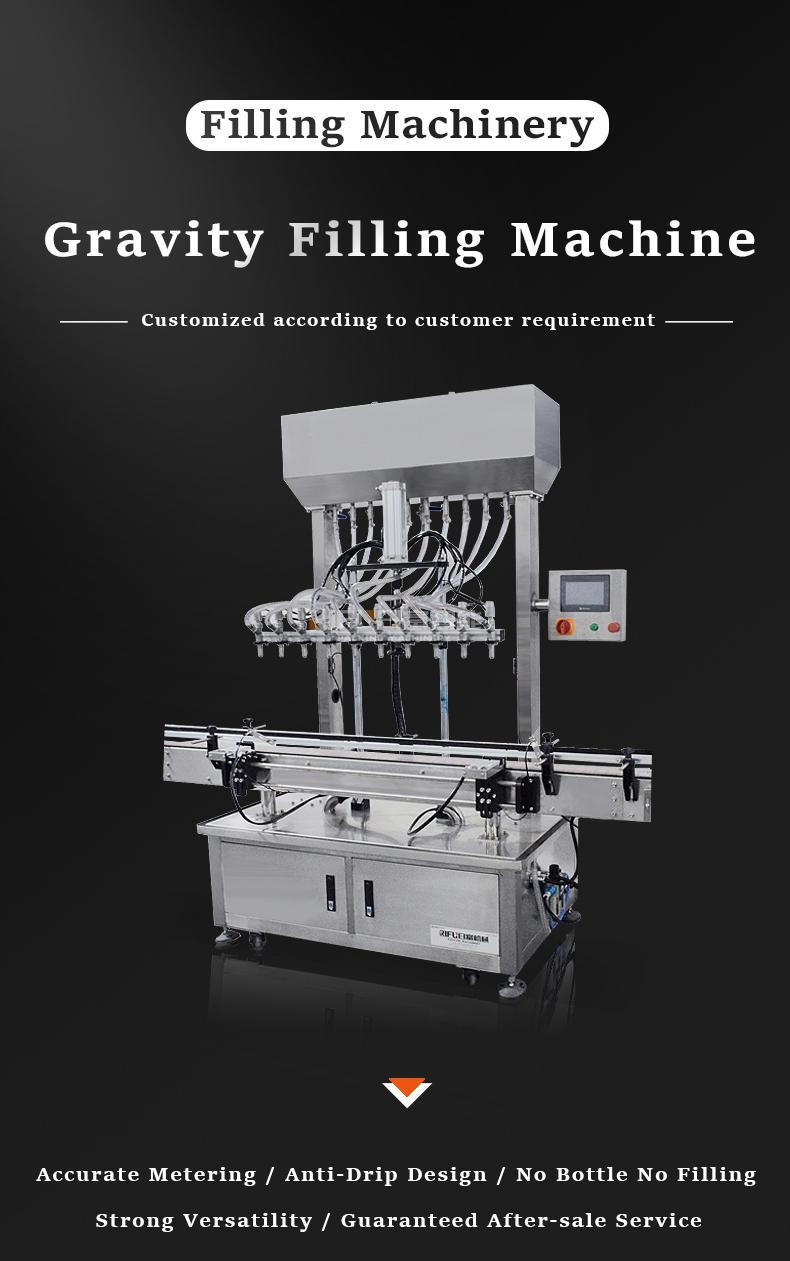

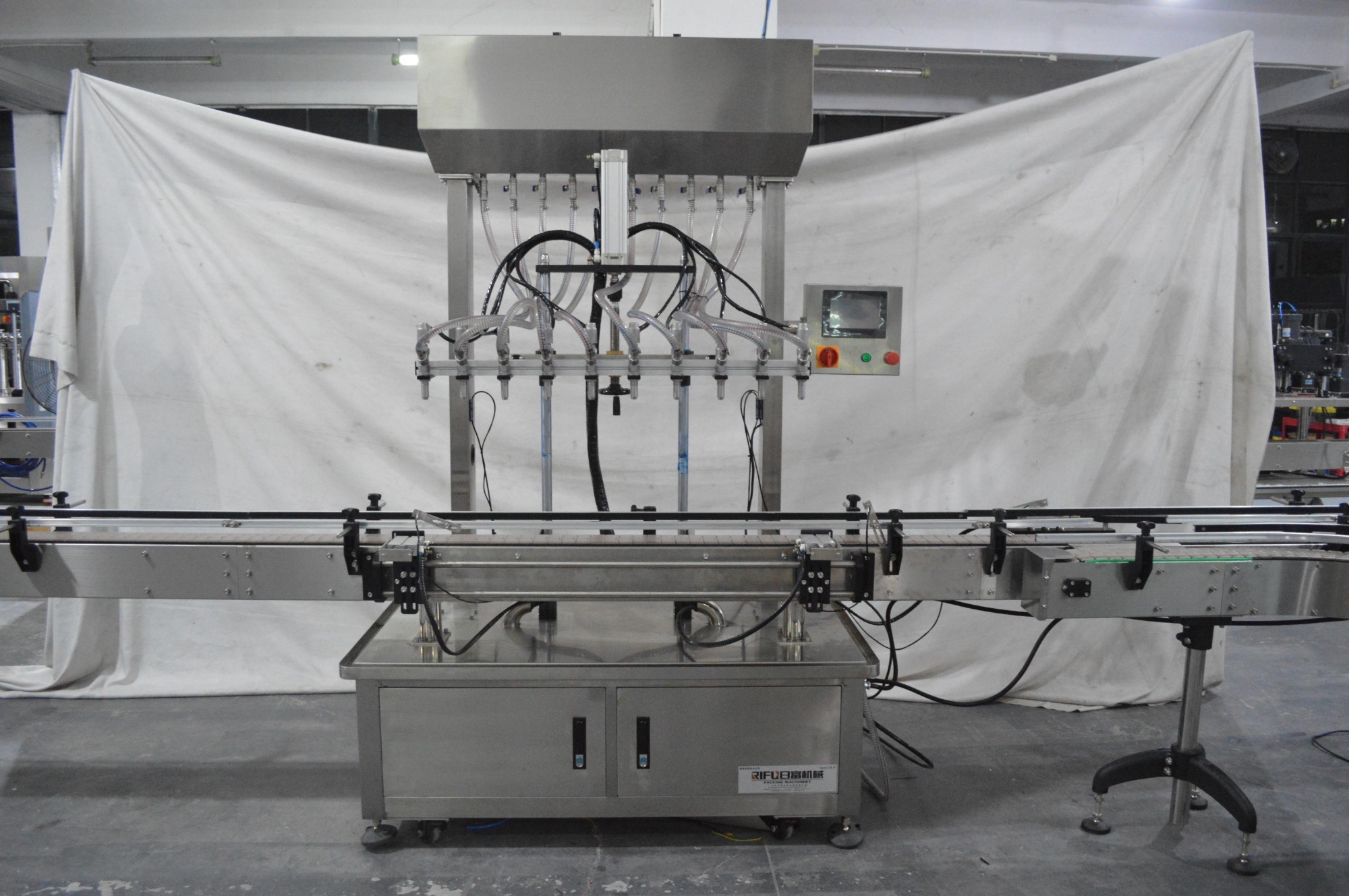

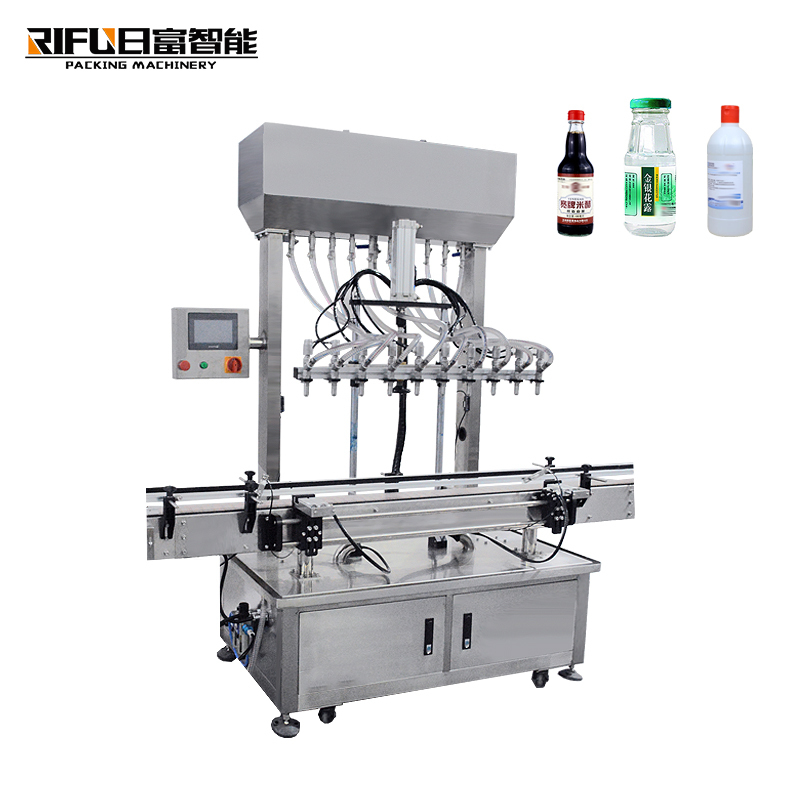

Automatic gravity liquid filling machine

The machine adopts gravity filling way. It dedicated to non-viscous or low-viscous liquid material, such as water, vinegar, wine, hand disinfectant, etc. Filling measurement is accurate, no bubbles, no leakage. Suitable for filling containers of different specifications, can switch filling specifications in a few minutes, short filling cycle and high production capacity. No need to add spare parts to change filling volume, only need to adjust. Each filling head is equipped with bottle mouth station to ensure that filling is in the accurate position.

Note  Filling range and speed can be customized according to customer's needs.

   Device model RF-GZC6 RF-GZC8 RF-GZC10
   Filling range 100-5000ML
   Filling speed (BPH) 1400-1880 1920-2400 2400-3000
   Filling accuracy ±1% (Depends on filling volume and material)
   Applicable bottle height (MM) 80-180 (Customizable)
   Applicable bottle diameter (MM) 60-100 (Customizable)
   Power 1KW  220V 1.2KW  220V 1.2KW  220V
   Working pressure 0.6-0.8MPA
   Tank volume 200L (Customizable)
   Machine weight (KG) 450 500 550
   Outline dimension (MM) 2000*1300*2100 2000*1300*2100 2000*1400*2200

Guangdong Rifu Intelligent Equipment Co., Ltd is an efficient and technology enterprise. Professional manufacturing filling machine, capping machine, labeling machine, filling sealing machine, vacuum packing machine, vertical packing machine, heat shrinking packingmachine, cellophane wrapping machine, etc. We have own excellent team and a high level of equipment manufacturing personnel. Dedicated to strict quality control and thoughtful customer service. Has many of the world's countries and regions to establish long-term and friendly business.
