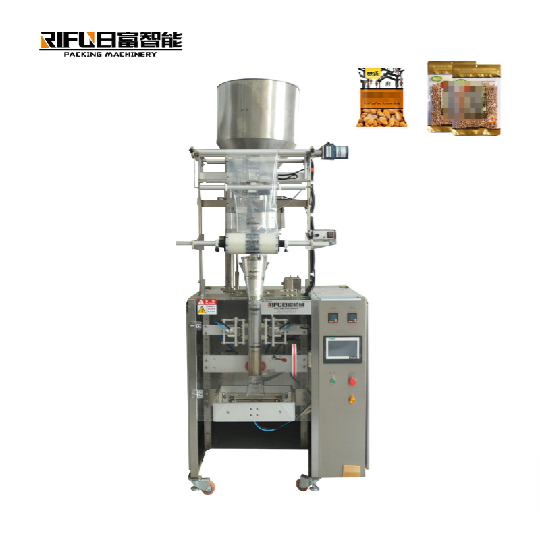

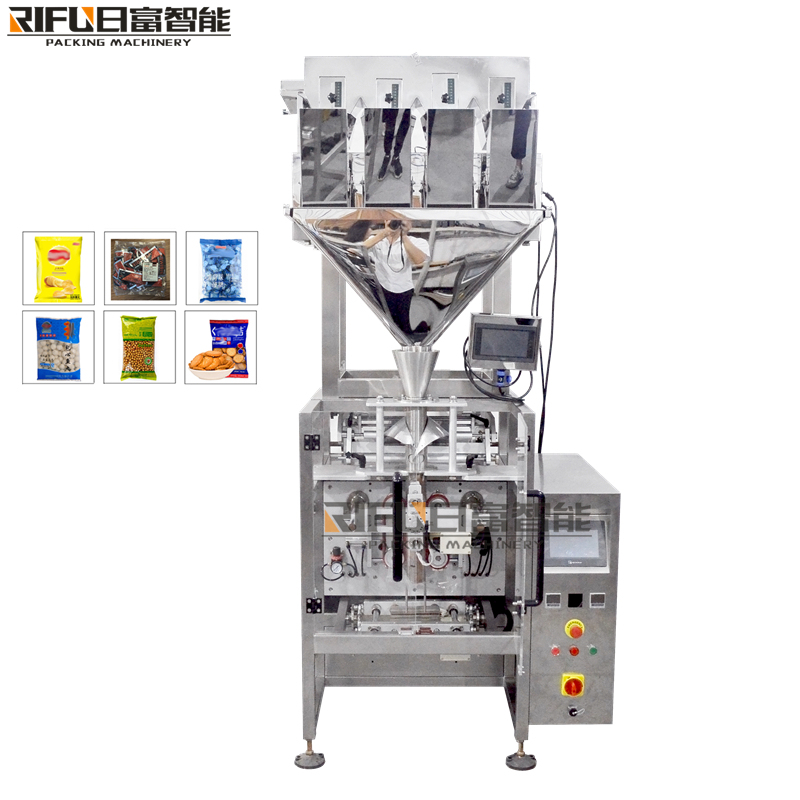

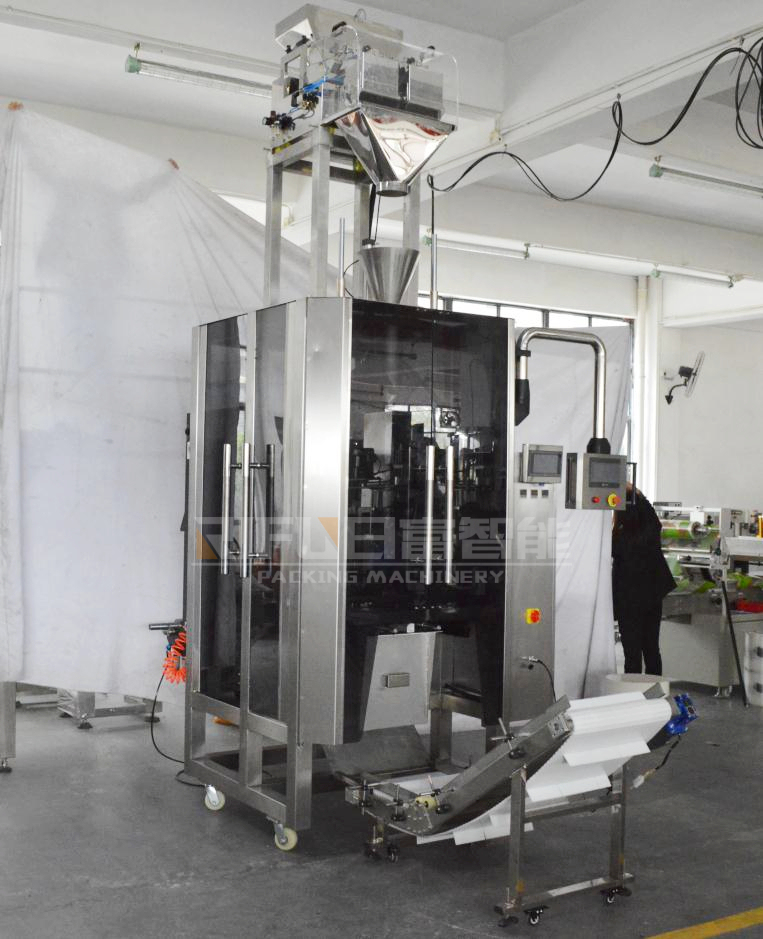

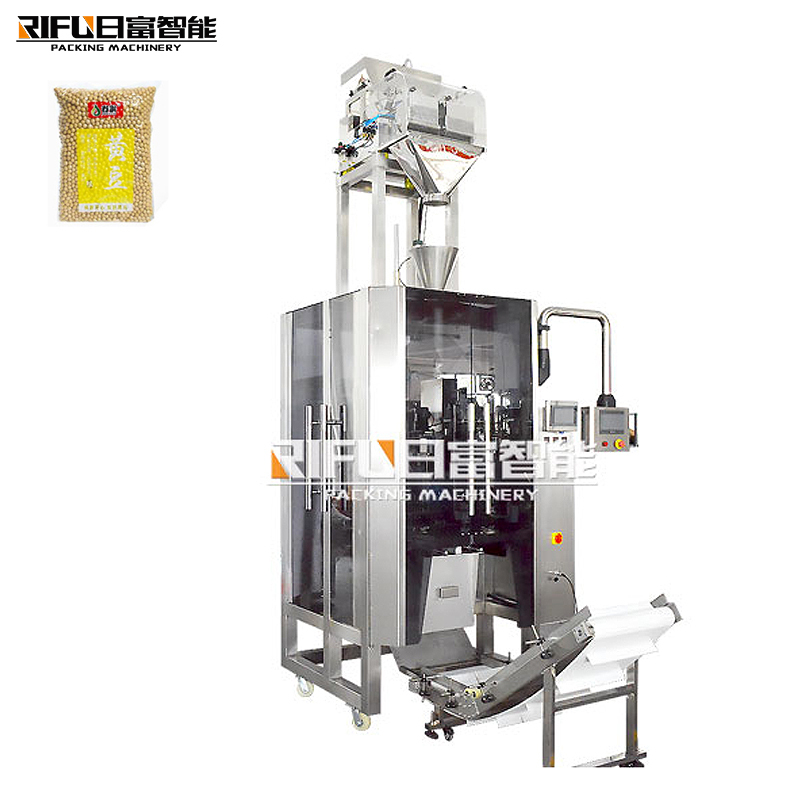

Automatic candy rice beans vertical vacuum granule packaging machine

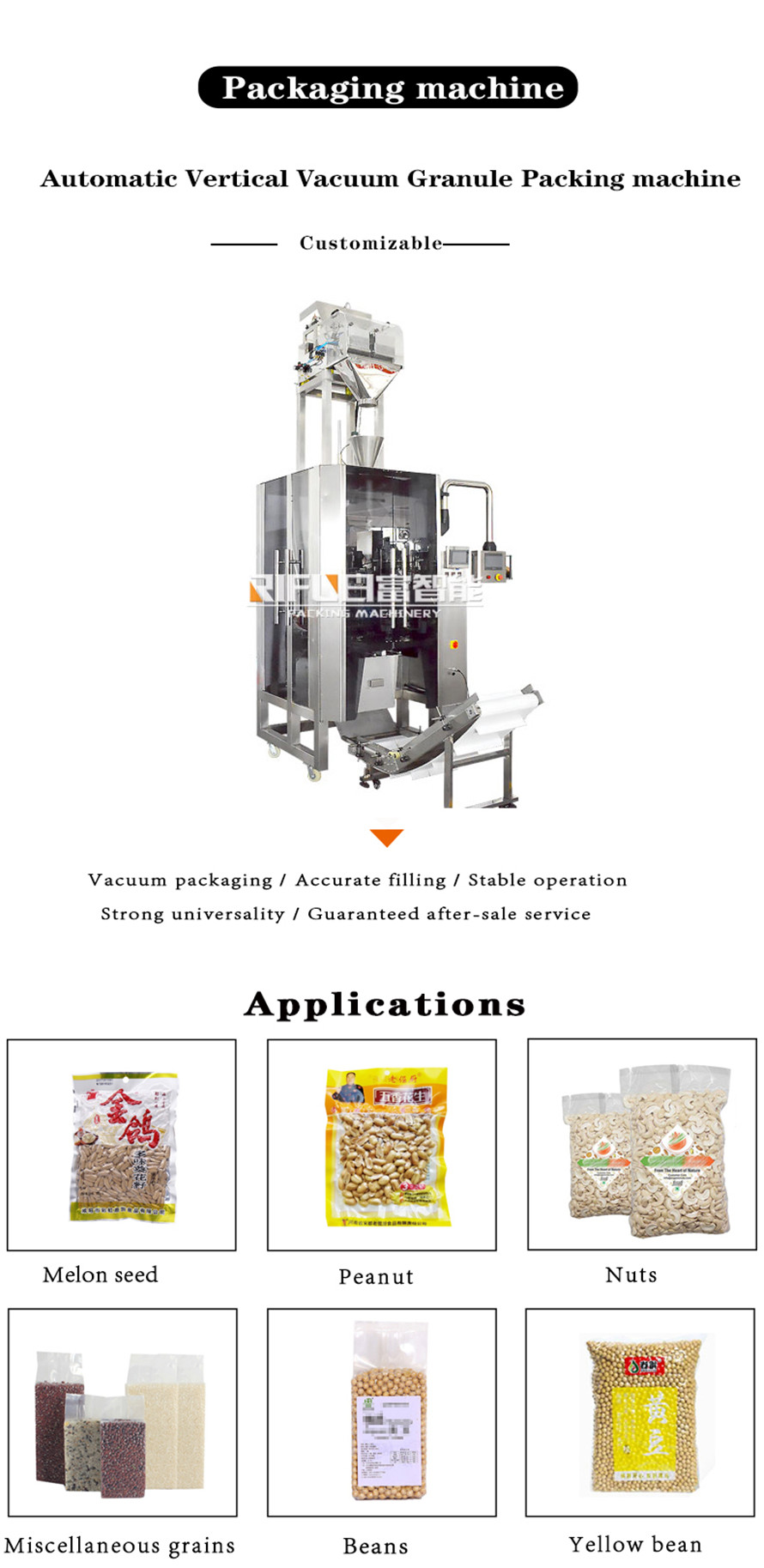

Automatic vertical vacuum granule packing machine

The machine is suitable for packaging many different kinds of products; such as peanut, popcorn, cornmeal, dried fruit, seed, small hardware,dumplings, vegetable, fruits and sugar etc.It has vacuum function to preserve freshness of foods.

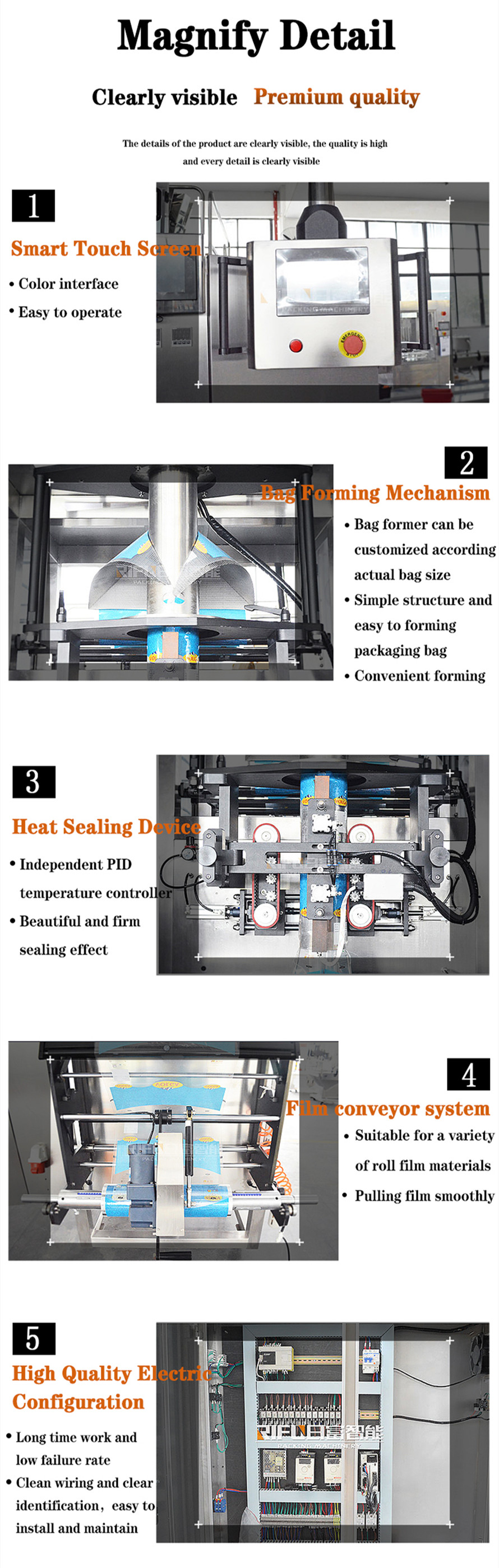

Features:

1.Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

2.Use famous brand electric and pneumatic components, stable and long life circle.

3.Use superior mechanical components, reduce the wear out loss.

4.PLC control with stable and high accuracy output.

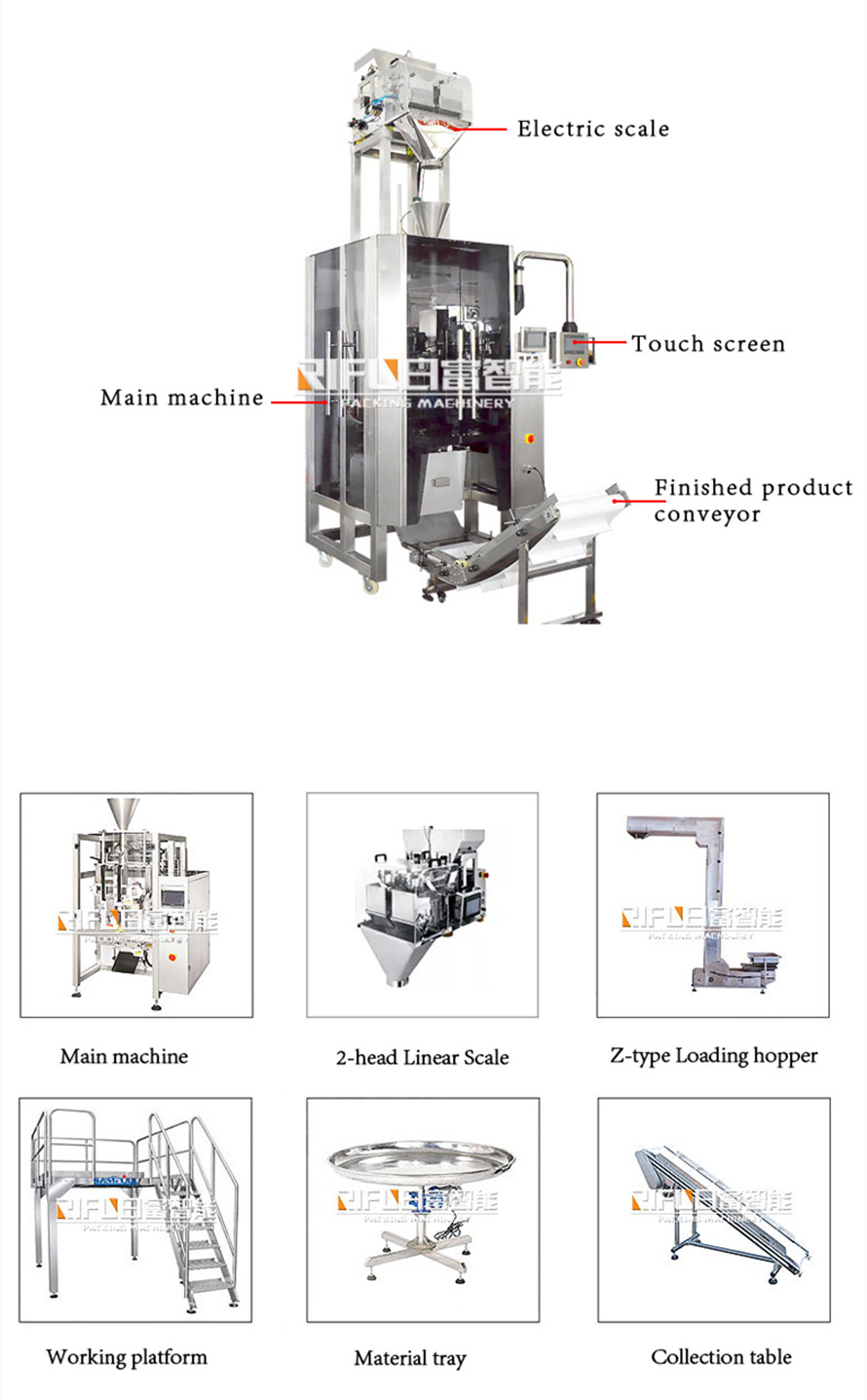

5.Two color touch screen 7", one for packing machine, another for electric scale.



Model	RF-420	RF-520	RF-720
Packing material	OPP/CPP，OPP/PE，PET/PE，PE
Maximum film width	≤420	≤520	≤720
Bag size（MM）	L 80-300  W 80-200	L 100-400  W100-250	L 100-480  W150-350
Packing speed（Bags/min）	5-60	5-55	5-50
Measurement range（ML）	100-1200	200-3000	300-5000
Compressed air consumption	6-8kgf/cm²，0.15m³/min
Power supply	AC380,50-60HZ
Power	4.75	5.25	5.75
Machine weight	1910	2010	2110
Overall dimension	4105*2457*3530	4105*2457*3751	4105*2457*4350

Guangdong Rifu Intelligent Equipment Co.,Ltd is an efficient and technology enterprise.Professional manufacturing filling machine,capping machine,labeling machine,filling sealing machine,vacuum packing machine,vertical packing machine,heat shrinking packingmachine,cellophane wrapping machine,etc.We have own excellent team and a high level of equipment manufacturing
personnel.Dedicated to strict quality control and thoughtful customer service.Has many of the world's countries and regions to establish long-term and friendly business.
