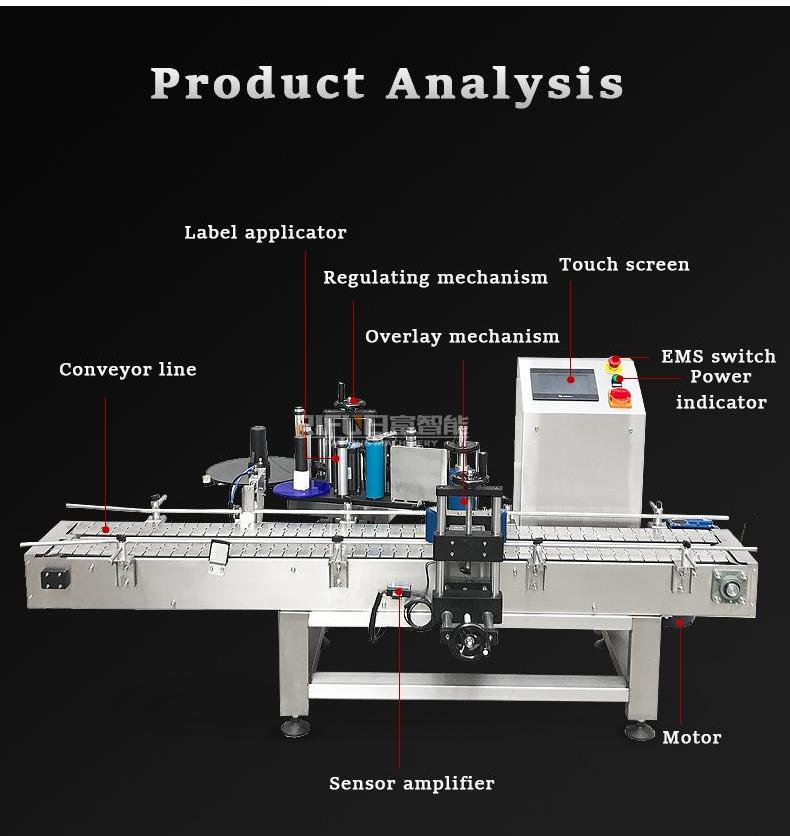

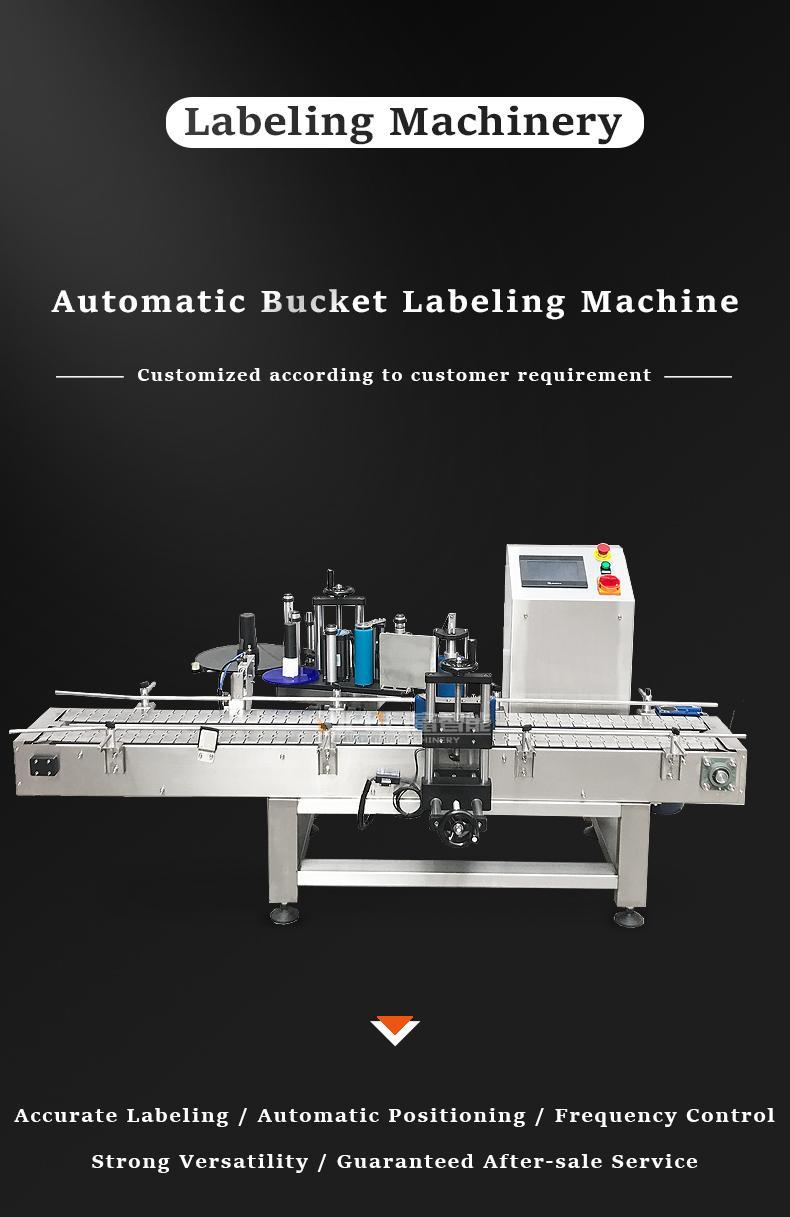

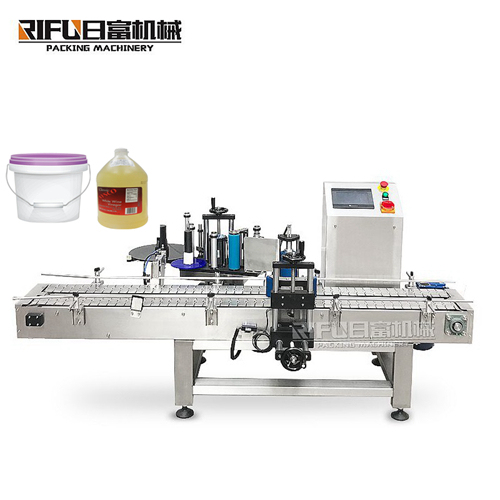

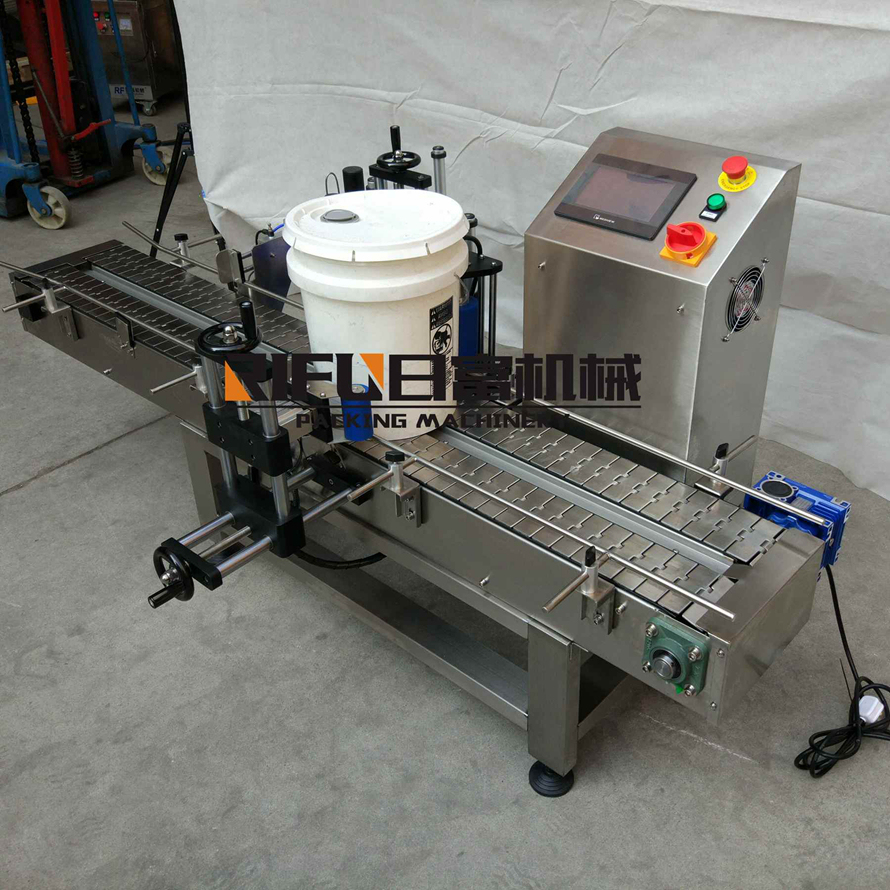

The bucket labeling machine is used for applying self-adhesive labels onto various round buckets.It can be pasted with a full - circumference label and a semi - circumferential label.Widely used in of pharmacy, food, daily chemical and the other industries. The machine is made of 304 stainless steel and aluminum alloy, controlled by PLC program,equipped with photoelectric detection.It can be connected with the filling production line,greatly improve production efficiency.
|
RF-200A | |
| Voltage | 220V/380V | |
| Accuracy | ±1mm | |
| Label speed | 10-20 bottles/min(can be customized) | |
| Conveyor speed | 5~25m/min | |
| Roll Label outer diameter | 300mm~350mm | |
| Roll Label inner diameter | 70mm~75mm | |
| Power | 1.5Kw | |
| Outline dimension(MM) | 2000mm×900mm×1500mm | |
| Weight(KG) | 200kg |
