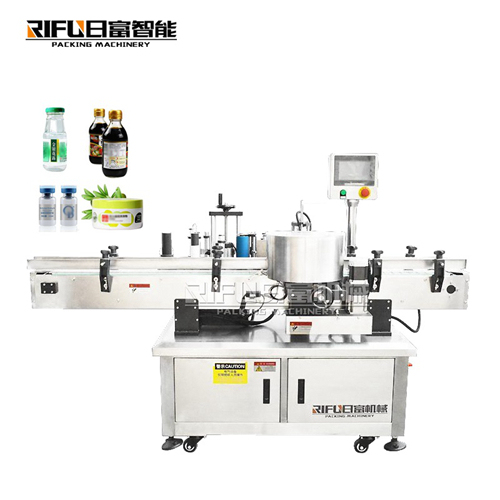

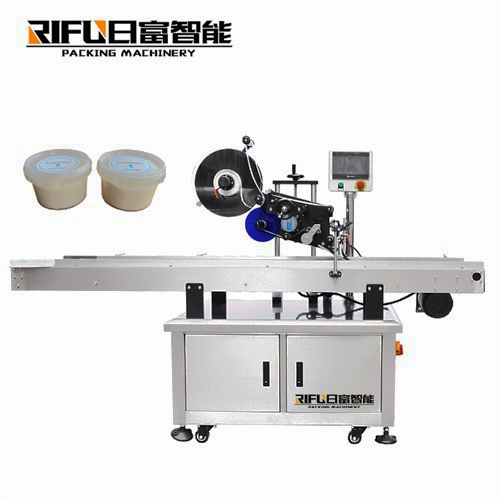

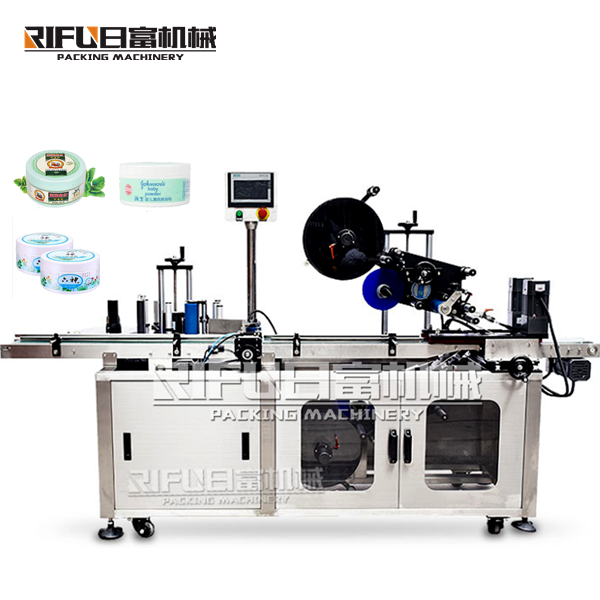

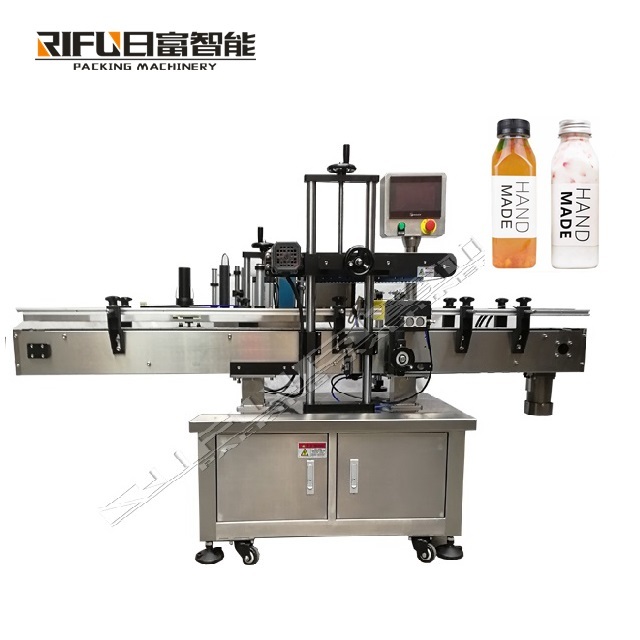

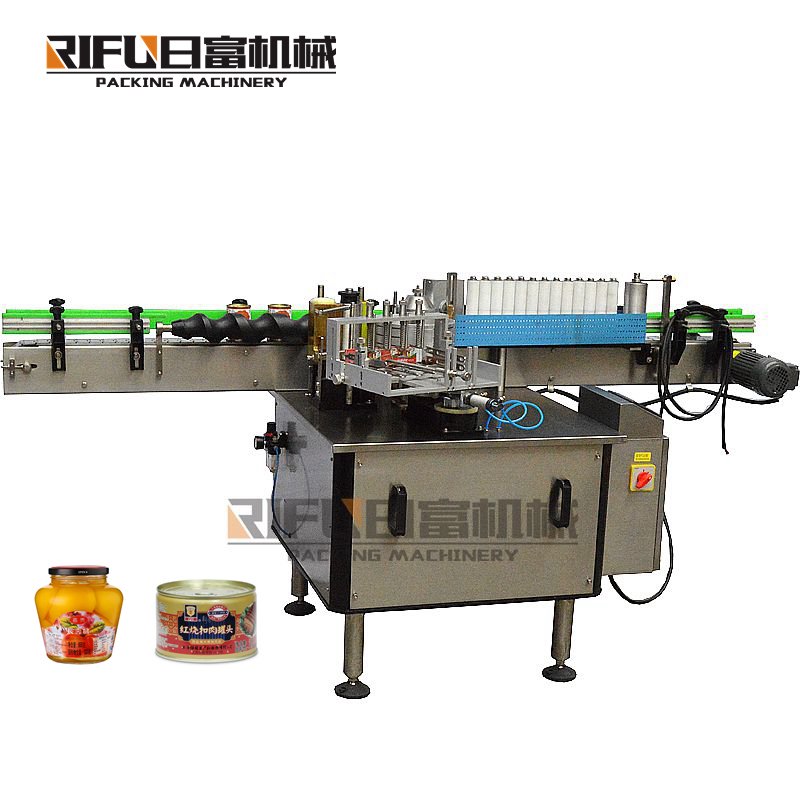

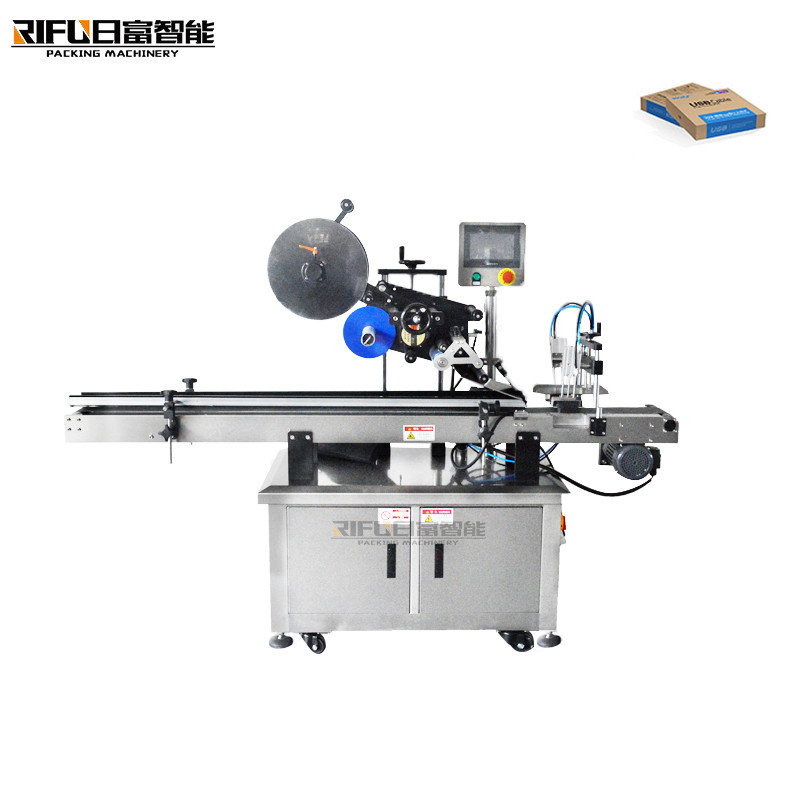

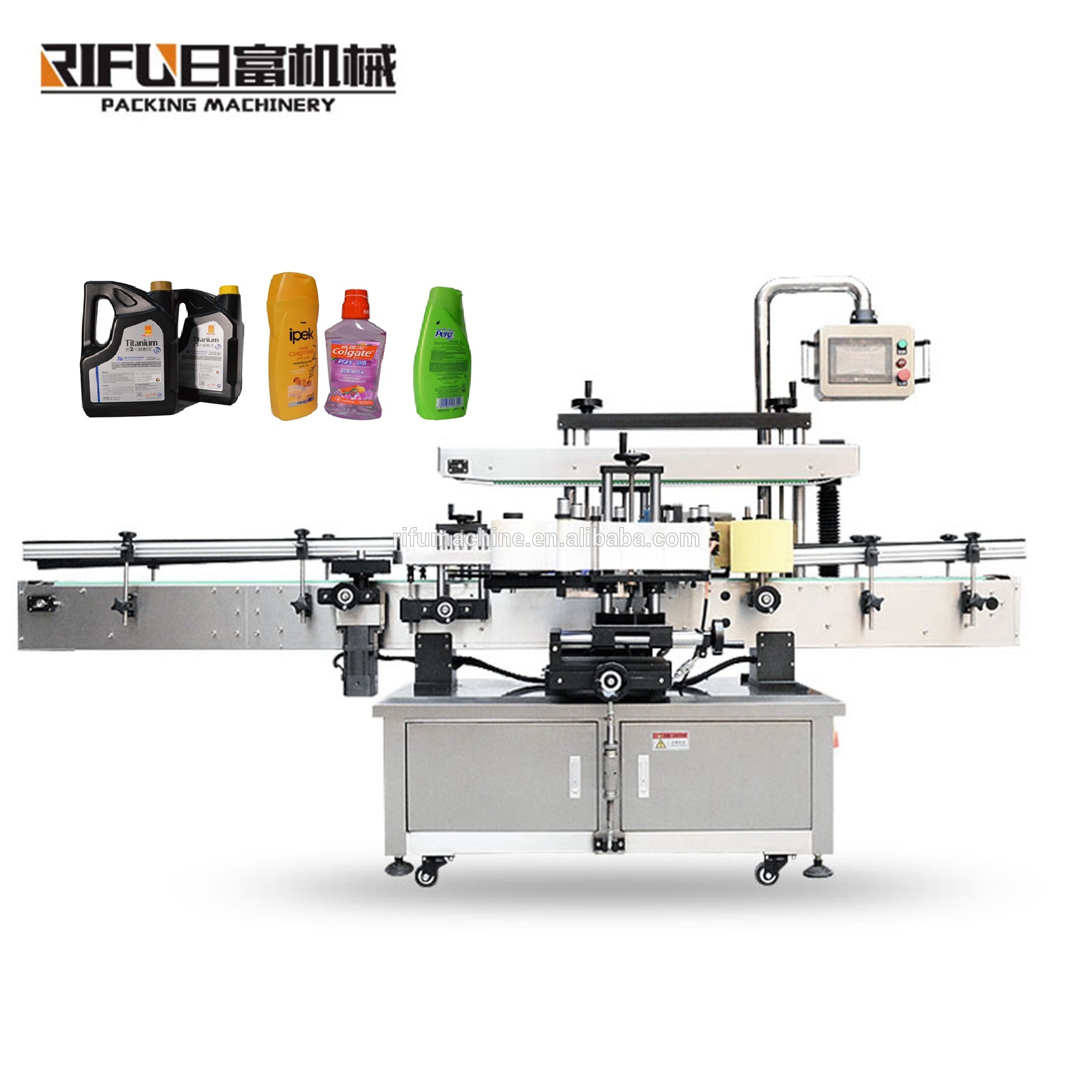

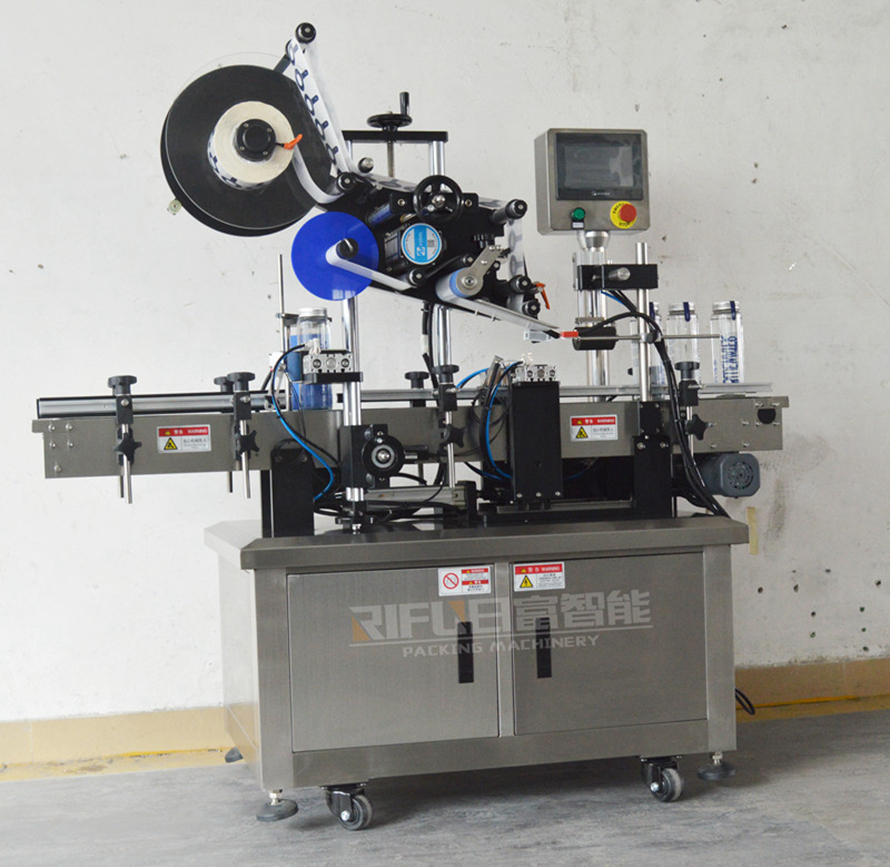

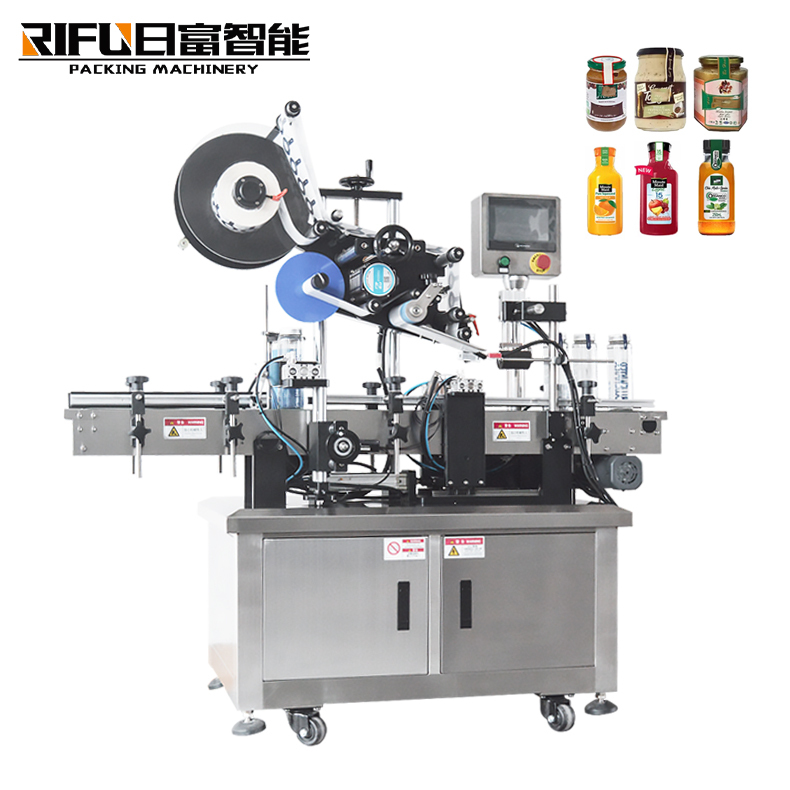

Automatic anti-fake label sticker labeling machine
This automatic labeling machine is specially used for labeling corners to prevent disassembly.It is widely used in cosmetics , food , medicine ,daily chemicals , electronics, toys , hardware , plastics and other industries.It can be used separately,also can be connected with assembly line.
|
Servo motor | ||
| Yield（pcs/min） | 30-150 | ||
| Operating direction | Left or Right | ||
| Conveyor Speed（m/min） |
|
||
| Labeling Accuracy | ±1.0 mm | ||
| The inner diameter of label roll | 76 mm | ||
| The outer diameter of label roll | 350 mm(max) | ||
| The suitable size of label | Width 15-300 mm Length 15-300 mm | ||
| The suitable size of labeling objects | Can be customized | ||
| Printer use air | 5kg/cm ² | ||
| Voltage | AC220V 50/60HZ Single phase(Can customized as client need) | ||
| Power（W） | 1000W | ||
| Weight（KG） |
|
||
| Machine size | 2000（L） 1200 (W) 1600 (H) mm （machine size can made as client need ) |
| 1pcs/ctn |
